Datapoints for p + o17 -> he4 + n14

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.797493e-05
0.15 3.382109e-03
0.2 7.288395e-02
0.3 1.700506e+00
0.4 2.617359e+01
0.5 2.587735e+02
0.6 1.326417e+03
0.7 4.396514e+03
0.8 1.100427e+04
0.9 2.279981e+04
1 4.136031e+04
1.5 2.784968e+05
2 8.291184e+05
2.5 1.756952e+06
3 3.108827e+06
3.5 4.922713e+06
4 7.225826e+06
4.5 1.003092e+07
5 1.333291e+07
6 2.130436e+07
7 3.068061e+07
8 4.069364e+07
9 5.037215e+07
10 5.870216e+07

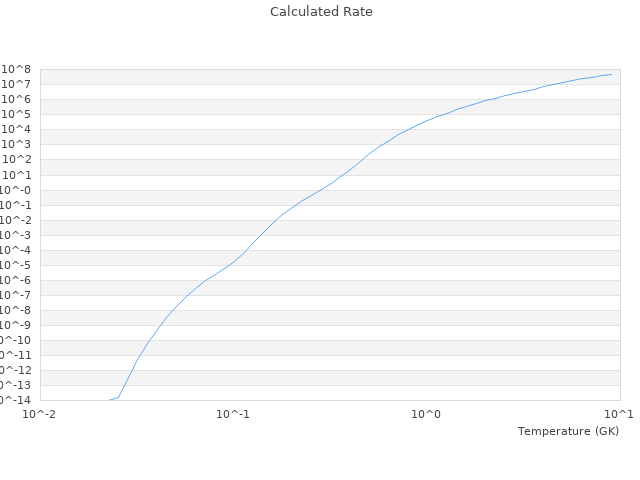

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 5.89E-25 5.66187773473E-25 3.873 %
0.03 1.73E-12 1.77602885856E-12 2.6606 %
0.1 1.8E-5 1.79749304587E-5 0.1393 %
0.3 1.68 1.70050618539 1.2206 %
1 40300 41360.3112967 2.631 %
3 3180000 3108827.38068 2.2381 %
10 61700000 58702160.1268 4.8587 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
