Datapoints for he4 + o18 -> ne22

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 6.123437e-21
0.15 6.388712e-15
0.2 1.456888e-11
0.3 6.665767e-08
0.4 6.291162e-06
0.5 1.089004e-04
0.6 7.681210e-04
0.7 3.180597e-03
0.8 9.364885e-03
0.9 2.189751e-02
1 4.353109e-02
1.5 3.748310e-01
2 1.478072e+00
2.5 6.407139e+00
3 2.642081e+01
3.5 8.198887e+01
4 1.958630e+02
4.5 3.858385e+02
5 6.626829e+02
6 1.502587e+03
7 2.795984e+03
8 4.735893e+03
9 7.593285e+03
10 1.145884e+04

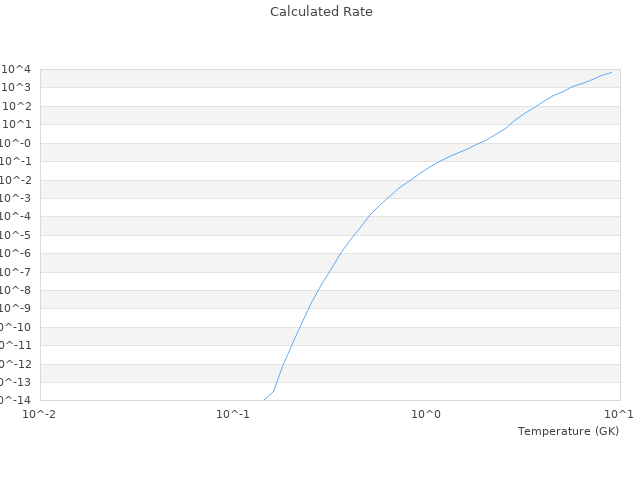

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 2.42E-62 2.12385945376E-62 12.2372 %
0.03 2.89E-41 2.69200092699E-41 6.8512 %
0.1 5.25E-21 6.12343718181E-21 16.6369 %
0.3 5.35E-8 6.66576693251E-8 24.5938 %
1 0.0442 0.0435310925152 1.5134 %
3 27.5 26.4208060871 3.9243 %
10 11100 11458.8434586 3.2328 %
