Datapoints for p + ne19 -> na20

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 5.360055e-11
0.15 8.358053e-09
0.2 2.672990e-07
0.3 2.028650e-04
0.4 9.717586e-03
0.5 9.658651e-02
0.6 4.358279e-01
0.7 1.257911e+00
0.8 2.755113e+00
0.9 5.032200e+00
1 8.108126e+00
1.5 3.326653e+01
2 6.813012e+01
2.5 1.059768e+02
3 1.396866e+02
3.5 1.631460e+02
4 1.757443e+02
4.5 1.817659e+02
5 1.857495e+02
6 1.930769e+02
7 1.958240e+02
8 1.911762e+02
9 1.800176e+02
10 1.640693e+02

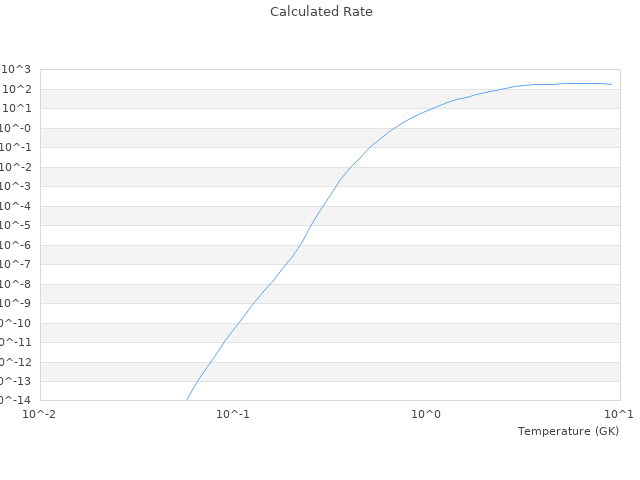

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 2.46E-31 2.36293486195E-31 3.9457 %
0.03 1.24E-19 1.24132166E-19 0.1066 %
0.1 5.4E-11 5.36005544717E-11 0.7397 %
0.3 0.000201 0.000202865038733 0.9279 %
1 7.86 8.10812602548 3.1568 %
3 138 139.686625678 1.2222 %
10 169 164.069346799 2.9175 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
