Datapoints for p + ne20 -> na21

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.177658e-09
0.15 2.674550e-07
0.2 5.894921e-06
0.3 3.159777e-04
0.4 4.050600e-03
0.5 2.390333e-02
0.6 8.559686e-02
0.7 2.188296e-01
0.8 4.552956e-01
0.9 8.716503e-01
1 1.668171e+00
1.5 2.745995e+01
2 1.355421e+02
2.5 3.631335e+02
3 7.077560e+02
3.5 1.141745e+03
4 1.629061e+03
4.5 2.135372e+03
5 2.632532e+03
6 3.523293e+03
7 4.211725e+03
8 4.681570e+03
9 4.955471e+03
10 5.071448e+03

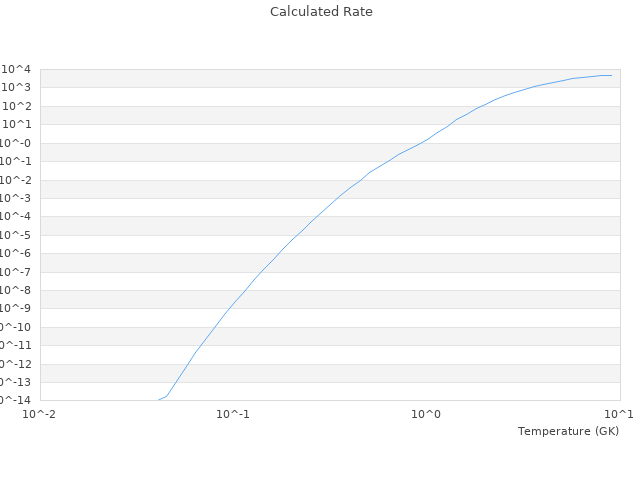

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 7.61E-29 6.46901354556E-29 14.9933 %
0.03 1.39E-17 1.45517418822E-17 4.6888 %
0.1 2.29E-9 2.17765770594E-9 4.9058 %
0.3 0.000309 0.00031597773506 2.2582 %
1 1.73 1.66817141601 3.5739 %
3 715 707.755956696 1.0132 %
10 5070 5071.44795045 0.0286 %
