Datapoints for na22 -> p + ne21
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 2.077102e-220 |
| 0.2 | 1.521622e-162 |
| 0.3 | 4.223358e-104 |
| 0.4 | 9.778931e-75 |
| 0.5 | 4.485381e-57 |
| 0.6 | 2.871840e-45 |
| 0.7 | 8.266368e-37 |
| 0.8 | 1.918366e-30 |
| 0.9 | 1.783834e-25 |
| 1 | 1.739354e-21 |
| 1.5 | 2.100575e-09 |
| 2 | 2.909585e-03 |
| 2.5 | 1.571820e+01 |
| 3 | 5.097346e+03 |
| 3.5 | 3.242972e+05 |
| 4 | 7.370284e+06 |
| 4.5 | 8.384767e+07 |
| 5 | 5.862881e+08 |
| 6 | 1.083408e+10 |
| 7 | 8.786377e+10 |
| 8 | 4.340576e+11 |
| 9 | 1.575705e+12 |
| 10 | 4.719220e+12 |

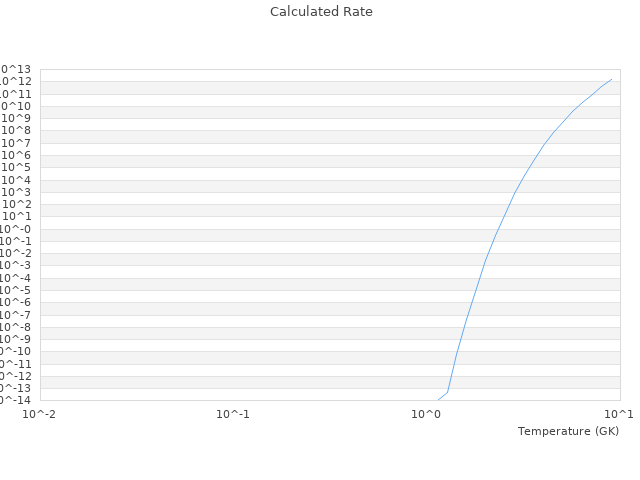

| View Graph | |
