Datapoints for p + ne22 -> na23

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 9.210424e-09
0.15 2.688287e-06
0.2 5.786029e-05
0.3 1.753000e-02
0.4 7.544649e-01
0.5 7.751373e+00
0.6 3.793233e+01
0.7 1.208066e+02
0.8 2.932055e+02
0.9 5.923984e+02
1 1.050971e+03
1.5 6.347190e+03
2 1.658552e+04
2.5 3.023938e+04
3 4.550872e+04
3.5 6.100541e+04
4 7.584169e+04
4.5 8.954055e+04
5 1.019170e+05
6 1.228368e+05
7 1.397198e+05
8 1.542558e+05
9 1.681470e+05
10 1.829832e+05

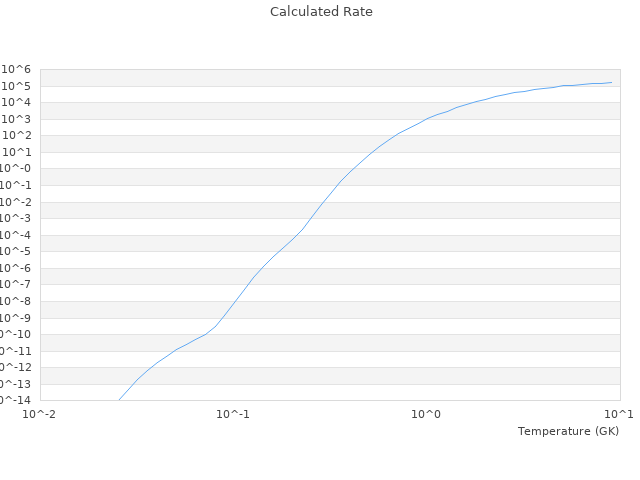

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 6.67E-25 6.48379386884E-25 2.7917 %
0.03 1.01E-13 1.03791634493E-13 2.764 %
0.1 9.18E-9 9.21042410741E-9 0.3314 %
0.3 0.0172 0.0175299993772 1.9186 %
1 1030 1050.97054674 2.036 %
3 45900 45508.7177466 0.8525 %
10 180000 182983.15185 1.6573 %
