Datapoints for p + na23 -> mg24

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.227866e-08
0.15 5.017689e-05
0.2 7.715734e-03
0.3 1.095026e+00
0.4 1.212296e+01
0.5 4.959982e+01
0.6 1.249049e+02
0.7 2.400123e+02
0.8 3.911422e+02
0.9 5.727770e+02
1 7.799103e+02
1.5 2.125306e+03
2 4.113205e+03
2.5 7.022927e+03
3 1.058237e+04
3.5 1.389531e+04
4 1.628990e+04
4.5 1.791900e+04
5 1.940090e+04
6 2.315649e+04
7 2.688640e+04
8 2.881690e+04
9 2.827865e+04
10 2.544500e+04

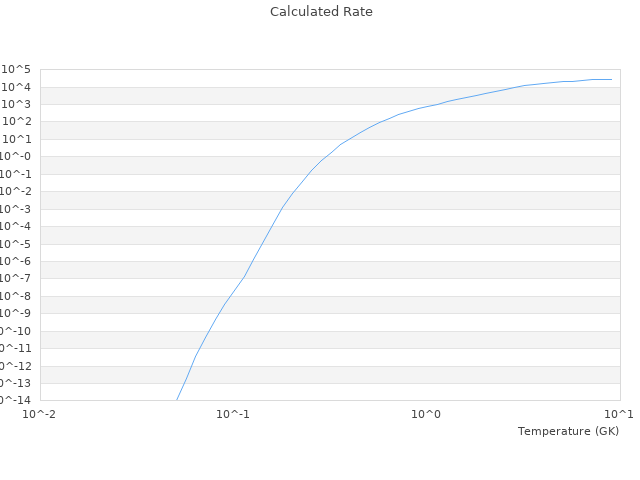

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 1.21E-32 1.22323912022E-32 1.0941 %
0.03 4.02E-20 4.125541156E-20 2.6254 %
0.1 2.22E-8 2.22786550214E-8 0.3543 %
0.3 1.14 1.09502584078 3.9451 %
1 737 779.910343682 5.8223 %
3 10300 10582.3722623 2.7415 %
10 27200 25444.9960066 6.4522 %
