Datapoints for p + na23 -> he4 + ne20

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 3.243812e-07
0.15 2.025993e-04
0.2 1.108554e-02
0.3 1.135353e+00
0.4 1.592560e+01
0.5 9.494735e+01
0.6 3.611293e+02
0.7 1.046280e+03
0.8 2.522503e+03
0.9 5.313602e+03
1 1.007255e+04
1.5 8.630213e+04
2 2.703792e+05
2.5 5.580765e+05
3 1.006902e+06
3.5 1.689524e+06
4 2.626465e+06
4.5 3.805333e+06
5 5.207711e+06
6 8.620398e+06
7 1.278924e+07
8 1.775919e+07
9 2.373809e+07
10 3.113444e+07

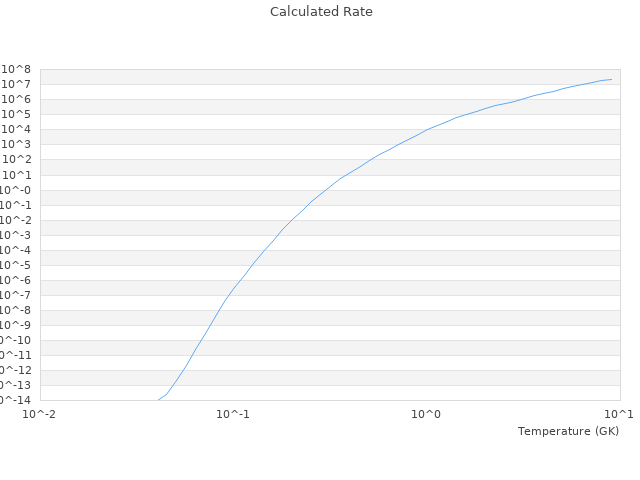

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 1.88E-30 2.1490691138891E-30 14.3122 %
0.03 6.55E-18 7.0010290904276E-18 6.8859 %
0.1 3.35E-7 3.2438118149646E-7 3.1698 %
0.3 1.26 1.1353527330307 9.8926 %
1 10700 10072.554893445 5.864 %
3 1060000 1006901.8789395 5.0093 %
10 30800000 31134443.77904 1.0859 %
