Datapoints for he4 + ne22 -> mg26

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 5.596852e-26
0.15 1.531991e-20
0.2 3.964251e-17
0.3 2.012913e-12
0.4 6.643993e-10
0.5 2.632760e-08
0.6 3.563887e-07
0.7 2.590543e-06
0.8 1.271507e-05
0.9 4.799647e-05
1 1.510294e-04
1.5 1.168265e-02
2 2.705724e-01
2.5 2.540359e+00
3 1.237052e+01
3.5 3.937976e+01
4 9.708526e+01
4.5 2.068667e+02
5 4.033340e+02
6 1.245583e+03
7 2.894030e+03
8 5.096343e+03
9 7.408531e+03
10 1.219790e+04

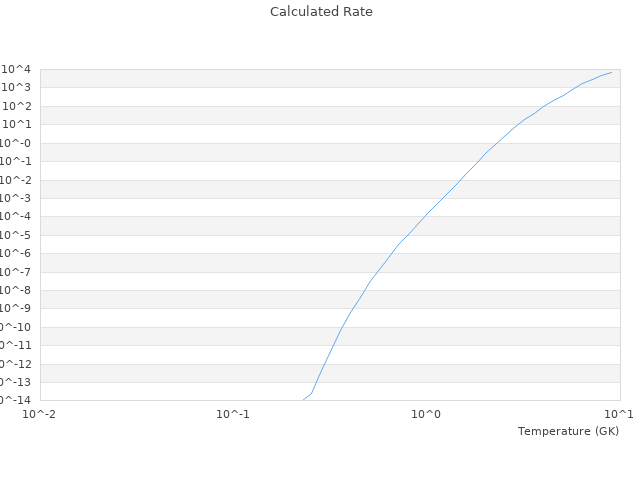

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 8.27E-78 8.52663223724E-78 3.1032 %
0.03 2.16E-49 2.47248291029E-49 14.4668 %
0.1 6.04E-26 5.59685224825E-26 7.3369 %
0.3 1.98E-12 2.01291295104E-12 1.6623 %
1 0.000157 0.000151029373358 3.8029 %
3 11.5 12.370517416 7.5697 %
10 12000 12197.8964116 1.6491 %
