Datapoints for p + na22 -> mg23

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 7.140358e-07
0.15 9.229845e-04
0.2 3.250301e-02
0.3 1.178707e+00
0.4 7.502060e+00
0.5 2.391872e+01
0.6 5.388394e+01
0.7 9.927129e+01
0.8 1.608748e+02
0.9 2.388246e+02
1 3.328433e+02
1.5 1.020214e+03
2 1.984880e+03
2.5 3.103240e+03
3 4.266571e+03
3.5 5.393555e+03
4 6.431765e+03
4.5 7.353652e+03
5 8.150600e+03
6 9.395527e+03
7 1.027831e+04
8 1.094760e+04
9 1.154459e+04
10 1.219284e+04

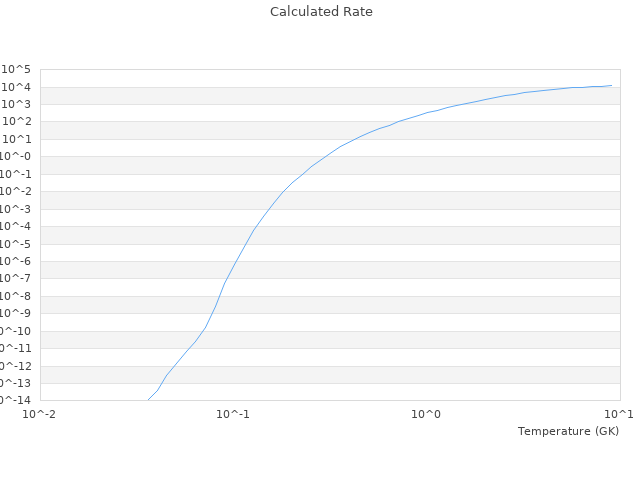

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 2.08E-30 2.05979962836E-30 0.9712 %
0.03 2.2E-16 2.1118469472E-16 4.007 %
0.1 6.93E-7 7.14035827694E-7 3.0355 %
0.3 1.26 1.17870695871 6.4518 %
1 308 332.843331963 8.066 %
3 4390 4266.57114125 2.8116 %
10 12300 12192.8442817 0.8712 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
