Datapoints for p + mg23 -> al24

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 4.306908e-12
0.15 1.301768e-09
0.2 9.502869e-08
0.3 2.461374e-04
0.4 1.560385e-02
0.5 1.796996e-01
0.6 8.883325e-01
0.7 2.724284e+00
0.8 6.222330e+00
0.9 1.170600e+01
1 1.925895e+01
1.5 8.150222e+01
2 1.621630e+02
2.5 2.432543e+02
3 3.198777e+02
3.5 3.920997e+02
4 4.612032e+02
4.5 5.285862e+02
5 5.954916e+02
6 7.318370e+02
7 8.765393e+02
8 1.034057e+03
9 1.207833e+03
10 1.400758e+03

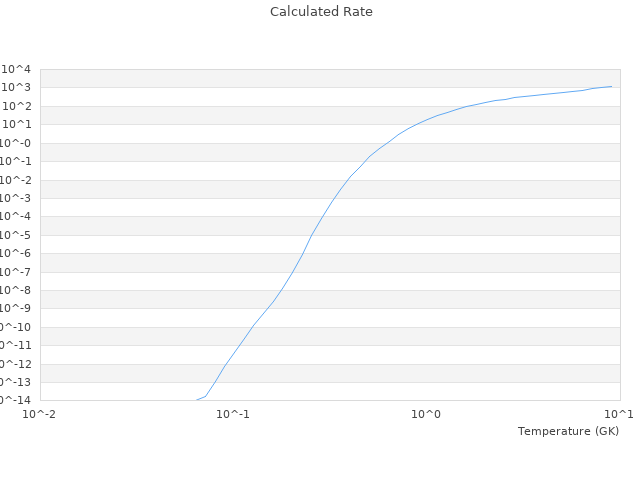

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 3.59E-35 3.58602970854E-35 0.1106 %
0.03 6.72E-22 6.76019190087E-22 0.5981 %
0.1 4.32E-12 4.30690760511E-12 0.3031 %
0.3 0.000247 0.000246137352478 0.3493 %
1 19.7 19.2589520704 2.2388 %
3 312 319.877714366 2.5249 %
10 1390 1400.7582736 0.774 %
