Datapoints for p + mg24 -> al25

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.083613e-06
0.15 2.253194e-03
0.2 9.079787e-02
0.3 3.127166e+00
0.4 1.660682e+01
0.5 4.303155e+01
0.6 7.904378e+01
0.7 1.202690e+02
0.8 1.635092e+02
0.9 2.069354e+02
1 2.497236e+02
1.5 4.584562e+02
2 7.090047e+02
2.5 1.046017e+03
3 1.414495e+03
3.5 1.704204e+03
4 1.871879e+03
4.5 1.972362e+03
5 2.082267e+03
6 2.412799e+03
7 2.743024e+03
8 2.912629e+03
9 2.865224e+03
10 2.609705e+03

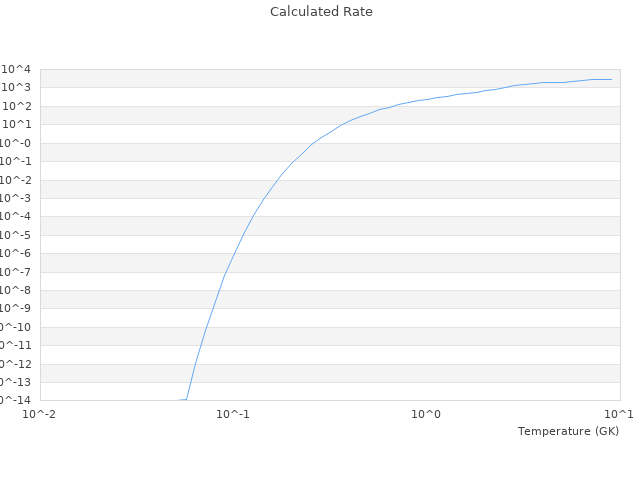

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 4.29E-35 4.22231098607E-35 1.5778 %
0.03 8.92E-22 9.05507615996E-22 1.5143 %
0.1 1.09E-6 1.08361308889E-6 0.586 %
0.3 3.17 3.1271656243 1.3512 %
1 242 249.723619551 3.1916 %
3 1370 1414.49465631 3.2478 %
10 2900 2609.70523634 10.0102 %
