Datapoints for p + mg25 -> al26

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.578095e-08
0.15 6.496159e-06
0.2 1.232486e-03
0.3 2.700491e-01
0.4 4.180313e+00
0.5 2.229893e+01
0.6 6.961329e+01
0.7 1.596445e+02
0.8 3.014068e+02
0.9 4.992001e+02
1 7.536017e+02
1.5 2.764219e+03
2 5.594392e+03
2.5 8.769074e+03
3 1.198923e+04
3.5 1.508806e+04
4 1.798258e+04
4.5 2.064100e+04
5 2.306216e+04
6 2.726875e+04
7 3.082354e+04
8 3.398597e+04
9 3.700576e+04
10 4.011379e+04

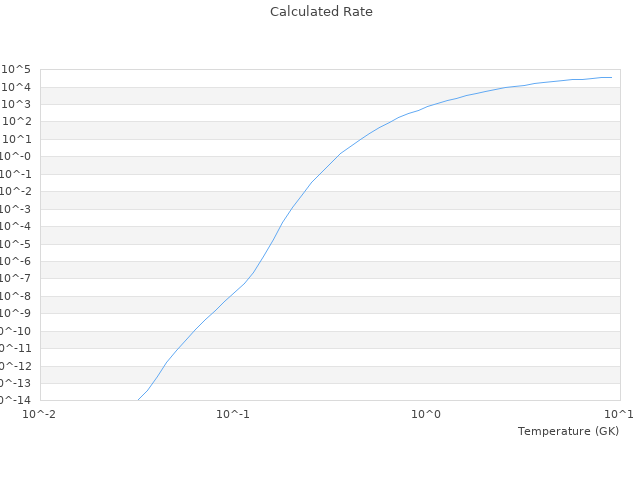

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 1.56E-32 1.61151840582E-32 3.3025 %
0.03 1.74E-15 1.6079273423E-15 7.5904 %
0.1 1.6E-8 1.57809540065E-8 1.369 %
0.3 0.277 0.270049149006 2.5093 %
1 753 753.601663035 0.0799 %
3 12200 11989.2307782 1.7276 %
10 40300 40113.7936673 0.4621 %
