Datapoints for p + mg25 -> al-6

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.315882e-08
0.15 5.401992e-06
0.2 1.052975e-03
0.3 2.286853e-01
0.4 3.468375e+00
0.5 1.811740e+01
0.6 5.546721e+01
0.7 1.249792e+02
0.8 2.322550e+02
0.9 3.792586e+02
1 5.653183e+02
1.5 1.979192e+03
2 3.895186e+03
2.5 6.003429e+03
3 8.127194e+03
3.5 1.017326e+04
4 1.209622e+04
4.5 1.387814e+04
5 1.551703e+04
6 1.839962e+04
7 2.084903e+04
8 2.299337e+04
9 2.495790e+04
10 2.685771e+04

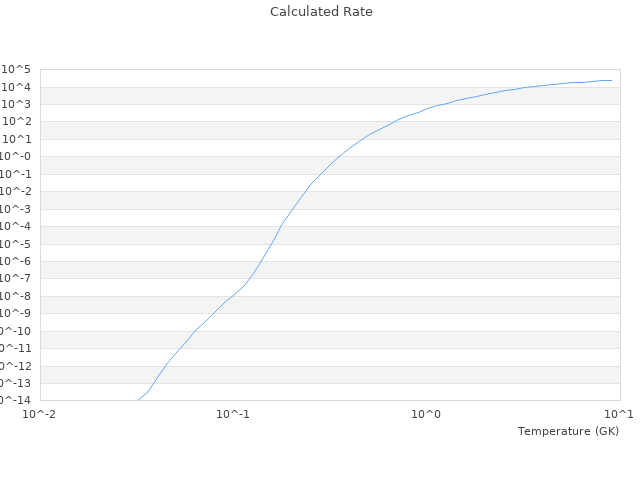

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 1.22E-32 1.26366714938E-32 3.5793 %
0.03 1.41E-15 1.29656885205E-15 8.0448 %
0.1 1.34E-8 1.31588211164E-8 1.7998 %
0.3 0.233 0.228685293972 1.8518 %
1 565 565.31825428 0.0563 %
3 8340 8127.19413468 2.5516 %
10 27100 26857.7129513 0.894 %
