Datapoints for p + al23 -> si24
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.727544e-06 |
| 0.15 | 2.044054e-04 |
| 0.2 | 1.987811e-03 |
| 0.3 | 1.641453e-02 |
| 0.4 | 4.212058e-02 |
| 0.5 | 7.001346e-02 |
| 0.6 | 9.581944e-02 |
| 0.7 | 1.195986e-01 |
| 0.8 | 1.433457e-01 |
| 0.9 | 1.697293e-01 |
| 1 | 2.016211e-01 |
| 1.5 | 5.462660e-01 |
| 2 | 1.457046e+00 |
| 2.5 | 3.202889e+00 |
| 3 | 5.850770e+00 |
| 3.5 | 9.226125e+00 |
| 4 | 1.297950e+01 |
| 4.5 | 1.670490e+01 |
| 5 | 2.004688e+01 |
| 6 | 2.473738e+01 |
| 7 | 2.652077e+01 |
| 8 | 2.608798e+01 |
| 9 | 2.444446e+01 |
| 10 | 2.240943e+01 |

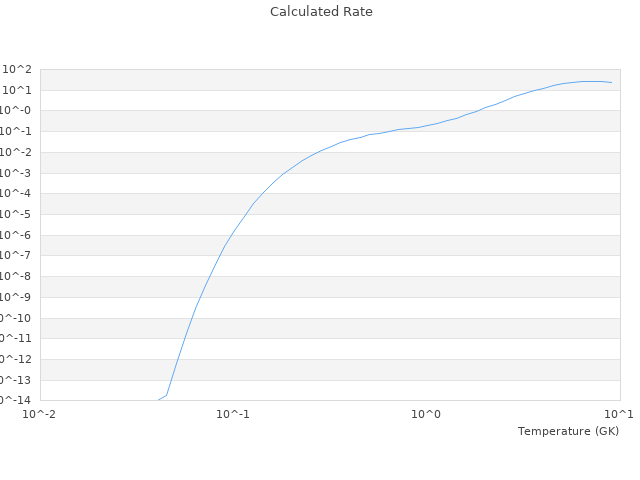

| View Graph | |
