Datapoints for p + si30 -> p31

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 6.886044e-13
0.15 1.219895e-09
0.2 1.605027e-06
0.3 3.690076e-03
0.4 2.071607e-01
0.5 2.477999e+00
0.6 1.336634e+01
0.7 4.524568e+01
0.8 1.138313e+02
0.9 2.342618e+02
1 4.181289e+02
1.5 2.379718e+03
2 5.623354e+03
2.5 9.365428e+03
3 1.316388e+04
3.5 1.687651e+04
4 2.051639e+04
4.5 2.418580e+04
5 2.808968e+04
6 3.803819e+04
7 5.129523e+04
8 6.199290e+04
9 7.190298e+04
10 8.825997e+04

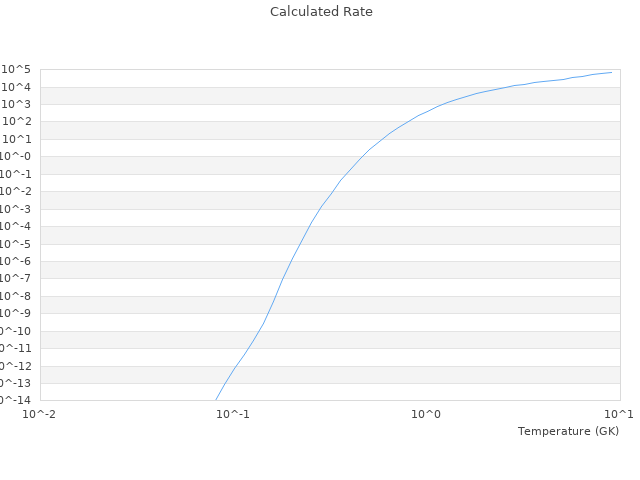

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 1.87E-37 1.87574482873E-37 0.3072 %
0.03 1.3E-20 1.28343959567E-20 1.2739 %
0.1 6.79E-13 6.88604387527E-13 1.4145 %
0.3 0.0038 0.00369007628182 2.8927 %
1 440 418.128872866 4.9707 %
3 12900 13163.8847591 2.0456 %
10 86900 88259.9658768 1.565 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
