Datapoints for p + al-6 -> si27

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 6.194612e-08
0.15 6.714326e-05
0.2 2.876128e-03
0.3 1.567024e-01
0.4 1.376856e+00
0.5 5.628925e+00
0.6 1.540019e+01
0.7 3.310238e+01
0.8 6.072385e+01
0.9 9.968904e+01
1 1.508399e+02
1.5 5.856530e+02
2 1.234837e+03
2.5 1.949986e+03
3 2.619517e+03
3.5 3.190266e+03
4 3.653407e+03
4.5 4.025110e+03
5 4.332241e+03
6 4.869690e+03
7 5.487629e+03
8 6.403257e+03
9 7.893782e+03
10 1.041756e+04

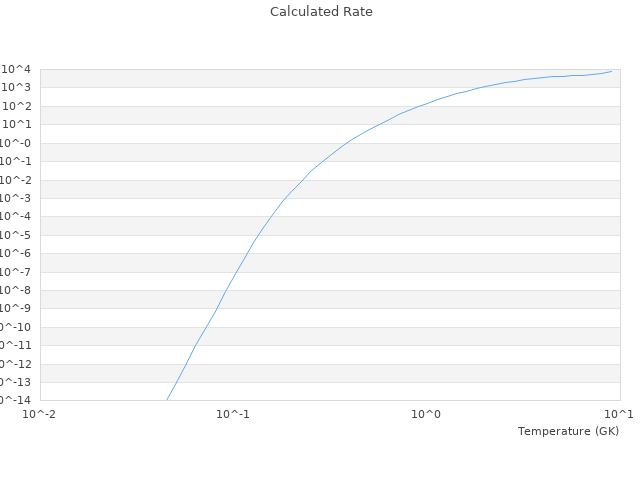

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 4.09E-37 5.59742088521E-37 36.8563 %
0.03 1.49E-19 1.47097718972E-19 1.2767 %
0.1 8.17E-8 6.19461177876E-8 24.1786 %
0.3 0.14 0.156702421538 11.9303 %
1 188 150.839943457 19.766 %
