Datapoints for p + p30 -> s31

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.213691e-10
0.15 4.400834e-08
0.2 2.447016e-06
0.3 1.471329e-03
0.4 5.918568e-02
0.5 5.629680e-01
0.6 2.615205e+00
0.7 8.038388e+00
0.8 1.899842e+01
0.9 3.753540e+01
1 6.521023e+01
1.5 3.505217e+02
2 7.936842e+02
2.5 1.242140e+03
3 1.611730e+03
3.5 1.883933e+03
4 2.070351e+03
4.5 2.190293e+03
5 2.261470e+03
6 2.307609e+03
7 2.273157e+03
8 2.184144e+03
9 2.049480e+03
10 1.937135e+03

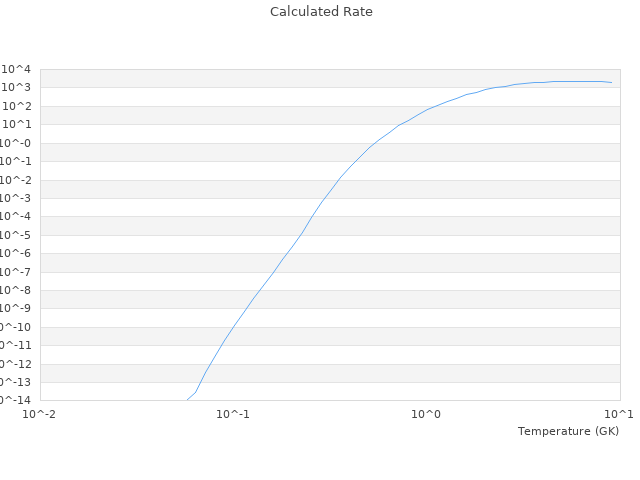

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.03 3.312542577E-25 3.31345645014E-25 0.0276 %
0.05 8.65774974E-17 8.65984608688E-17 0.0242 %
0.1 1.21343230676E-10 1.21369096978E-10 0.0213 %
0.2 2.4466959E-6 2.44701617491E-6 0.0131 %
0.3 0.001471310954 0.0014713289487 0.0012 %
0.5 0.56296226 0.562967995424 0.001 %
1 65.20968494 65.2102299568 0.0008 %
2 793.678744 793.68423076 0.0007 %
3 1611.720308 1611.73048275 0.0006 %
5 2261.4565 2261.46966295 0.0006 %
10 1937.01624 1937.13537055 0.0062 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
