Datapoints for he4 + o16 -> ne20

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 7.135456e-27
0.15 2.740392e-22
0.2 2.300583e-19
0.3 3.033044e-13
0.4 1.157432e-09
0.5 1.630391e-07
0.6 4.502523e-06
0.7 4.885573e-05
0.8 2.932821e-04
0.9 1.179354e-03
1 3.570602e-03
1.5 9.188151e-02
2 4.307183e-01
2.5 1.053835e+00
3 1.908788e+00
3.5 2.970266e+00
4 4.279827e+00
4.5 5.952281e+00
5 8.173576e+00
6 1.531087e+01
7 2.814442e+01
8 4.911888e+01
9 7.989989e+01
10 1.211516e+02

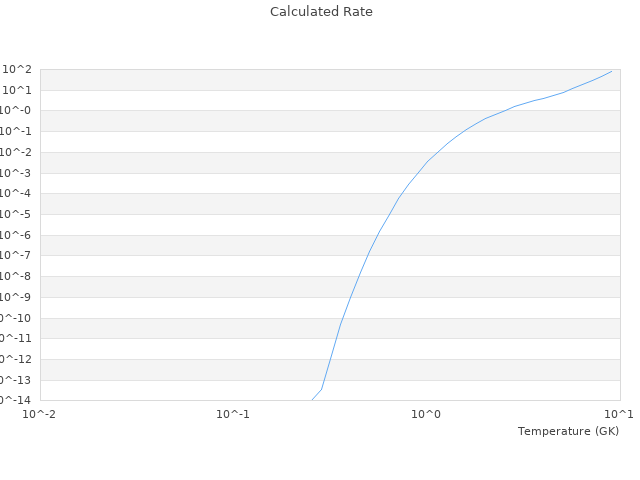

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 7.13E-27 7.1354563590317E-27 0.0765 %
0.2 2.3E-19 2.3005827233334E-19 0.0253 %
0.3 3.02E-13 3.0330438849324E-13 0.4319 %
0.5 1.63E-7 1.6303908294799E-7 0.024 %
1 0.00356 0.0035706015854563 0.2978 %
2 0.432 0.43071829637998 0.2967 %
3 1.9 1.9087876229288 0.4625 %
5 8.19 8.1735759776433 0.2005 %
10 121 121.15162766891 0.1253 %
