Datapoints for n + he4 + he4 -> be9

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.411233e-09
0.15 2.486728e-08
0.2 8.883843e-08
0.3 2.500784e-07
0.4 3.511609e-07
0.5 3.871754e-07
0.6 3.859052e-07
0.7 3.671910e-07
0.8 3.412695e-07
0.9 3.128859e-07
1 2.843089e-07
1.5 1.698701e-07
2 1.110149e-07
2.5 7.981864e-08
3 6.097358e-08
3.5 4.868728e-08
4 4.020505e-08
4.5 3.406595e-08
5 2.944233e-08
6 2.294615e-08
7 1.855163e-08
8 1.530662e-08
9 1.274729e-08
10 1.063285e-08

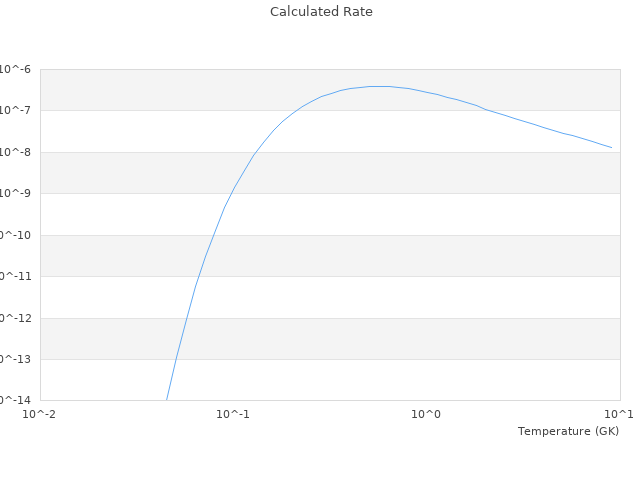

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.001 4.67E-59 4.89999277608E-59 4.9249 %
0.002 2.82E-47 2.69582858476E-47 4.4032 %
0.003 1.45E-41 1.37459885329E-41 5.2001 %
0.005 2.11E-35 2.05776972241E-35 2.4754 %
0.01 1.49E-28 1.52453218099E-28 2.3176 %
0.02 4.65E-23 4.50002419276E-23 3.2253 %
0.03 1.97E-19 2.02330983634E-19 2.7061 %
0.05 1.07E-13 1.05357912481E-13 1.5347 %
0.1 1.41E-9 1.41123323198E-9 0.0875 %
0.2 8.79E-8 8.88384310124E-8 1.0676 %
0.3 2.5E-7 2.5007840556E-7 0.0314 %
0.5 3.93E-7 3.8717539839E-7 1.4821 %
1 2.81E-7 2.84308870263E-7 1.1775 %
2 1.12E-7 1.11014925063E-7 0.8795 %
3 6.0E-8 6.09735837617E-8 1.6226 %
5 2.97E-8 2.94423254797E-8 0.8676 %
10 1.06E-8 1.06328522365E-8 0.3099 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
