Datapoints for p + al25 -> si26

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 6.911841e-11
0.15 2.246957e-08
0.2 3.624713e-06
0.3 4.277675e-03
0.4 1.350113e-01
0.5 9.949487e-01
0.6 3.591571e+00
0.7 8.691689e+00
0.8 1.646449e+01
0.9 2.657824e+01
1 3.845058e+01
1.5 1.053330e+02
2 1.618323e+02
2.5 2.053544e+02
3 2.433809e+02
3.5 2.831195e+02
4 3.300996e+02
4.5 3.884354e+02
5 4.612059e+02
6 6.587811e+02
7 9.353575e+02
8 1.297757e+03
9 1.749161e+03
10 2.290388e+03

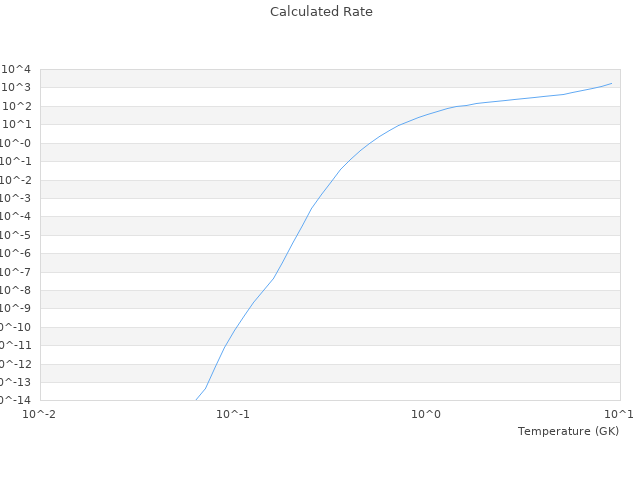

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 1.57E-37 1.58090964128E-37 0.6949 %
0.02 4.37E-28 4.37162534282E-28 0.0372 %
0.03 1.64E-23 1.63342420274E-23 0.401 %
0.05 2.63E-18 2.61969854983E-18 0.3917 %
0.1 6.92E-11 6.91184065115E-11 0.1179 %
0.2 3.52E-6 3.62471309849E-6 2.9748 %
0.3 0.00424 0.00427767524056 0.8886 %
0.5 1.01 0.994948665882 1.4902 %
1 38.7 38.4505765768 0.6445 %
2 160 161.83231686 1.1452 %
3 227 243.380928242 7.2163 %
5 479 461.205921872 3.7148 %
10 2230 2290.38761075 2.708 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
