Datapoints for he4 + d -> li6

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.068021e-05
0.15 7.243524e-05
0.2 2.453132e-04
0.3 1.160389e-03
0.4 3.171569e-03
0.5 6.691106e-03
0.6 1.238091e-02
0.7 2.133373e-02
0.8 3.498056e-02
0.9 5.481822e-02
1 8.213806e-02
1.5 3.478536e-01
2 7.846462e-01
2.5 1.282734e+00
3 1.768269e+00
3.5 2.223467e+00
4 2.663771e+00
4.5 3.113871e+00
5 3.593299e+00
6 4.663844e+00
7 5.826231e+00
8 6.938201e+00
9 7.844804e+00
10 8.427803e+00

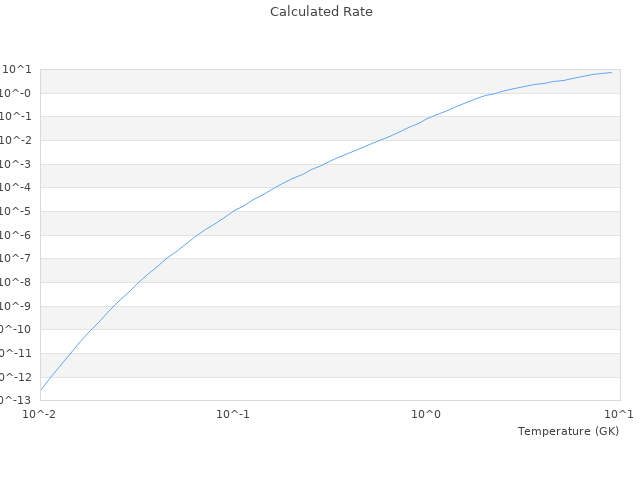

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 2.923E-13 2.86257665957E-13 2.0672 %
0.02 2.432E-10 2.41614409869E-10 0.652 %
0.03 6.277E-9 6.30903149983E-9 0.5103 %
0.05 2.093E-7 2.13324073572E-7 1.9226 %
0.1 1.038E-5 1.06802149578E-5 2.8922 %
0.2 0.0002416 0.000245313241038 1.5369 %
0.3 0.001167 0.00116038867301 0.5665 %
0.5 0.00693 0.00669110574884 3.4472 %
1 0.08079 0.0821380623461 1.6686 %
2 0.7854 0.784646157439 0.096 %
3 1.745 1.76826869761 1.3334 %
5 3.631 3.59329879104 1.0383 %
10 8.664 8.42780345981 2.7262 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
