Datapoints for p + n15 -> o16

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.103669e-05
0.15 1.229967e-03
0.2 1.891454e-02
0.3 6.326023e-01
0.4 4.617076e+00
0.5 1.626697e+01
0.6 3.886043e+01
0.7 7.330071e+01
0.8 1.190662e+02
0.9 1.773475e+02
1 2.542986e+02
1.5 1.450102e+03
2 4.892027e+03
2.5 9.884702e+03
3 1.518176e+04
3.5 2.004258e+04
4 2.417353e+04
4.5 2.753124e+04
5 3.018394e+04
6 3.379836e+04
7 3.581876e+04
8 3.684173e+04
9 3.725751e+04
10 3.731201e+04

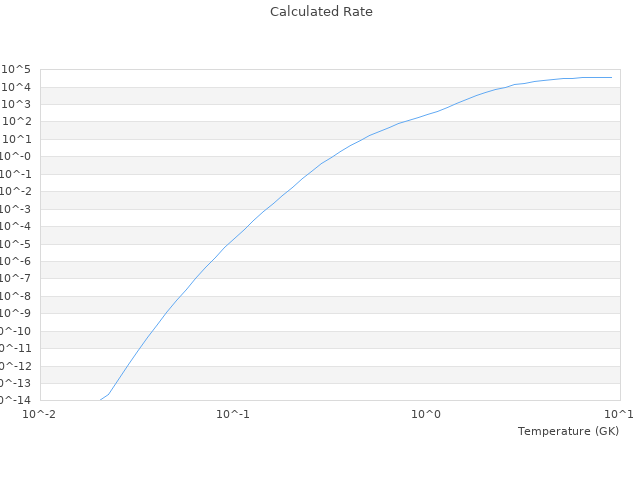

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 2.284E-21 2.27057655191E-21 0.5877 %
0.02 3.322E-15 3.30498728123E-15 0.5121 %
0.03 3.215E-12 3.21363798111E-12 0.0424 %
0.05 5.378E-9 5.42359908373E-9 0.8479 %
0.1 2.104E-5 2.10366873945E-5 0.0157 %
0.2 0.01908 0.0189145387161 0.8672 %
0.3 0.6143 0.632602254348 2.9794 %
0.5 16.68 16.2669694004 2.4762 %
1 259.9 254.298554162 2.1552 %
2 4735 4892.027437 3.3163 %
3 14890 15181.7557195 1.9594 %
5 30640 30183.9373535 1.4885 %
10 36740 37312.0064022 1.5569 %
