Datapoints for n + al26 -> he4 + na23

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.584312e+07
0.15 1.340266e+07
0.2 1.211440e+07
0.3 1.070414e+07
0.4 1.008754e+07
0.5 9.979005e+06
0.6 1.022635e+07
0.7 1.073219e+07
0.8 1.143232e+07
0.9 1.228332e+07
1 1.325490e+07
1.5 1.932276e+07
2 2.661661e+07
2.5 3.461318e+07
3 4.305837e+07
3.5 5.181186e+07
4 6.079749e+07
4.5 6.998125e+07
5 7.935926e+07
6 9.879095e+07
7 1.194384e+08
8 1.418560e+08
9 1.667788e+08
10 1.951331e+08

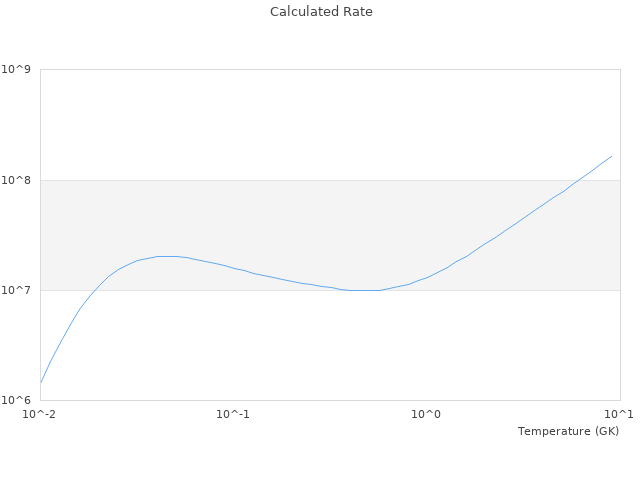

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 1440000 1443327.40618 0.2311 %
0.02 11300000 11109049.3125 1.6898 %
0.03 18600000 18012061.7292 3.161 %
0.05 20300000 20382099.2047 0.4044 %
0.1 15800000 15843118.4343 0.2729 %
0.2 12300000 12114401.1255 1.5089 %
0.3 11400000 10704143.0287 6.104 %
0.5 9260000 9979005.47831 7.7646 %
1 14000000 13254904.2506 5.3221 %
2 26000000 26616610.1409 2.3716 %
3 42000000 43058368.8075 2.5199 %
5 79500000 79359259.513 0.177 %
10 189000000 195133137.728 3.245 %
