Datapoints for o16 -> he4 + c12
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 2.952495e-248 |
| 0.2 | 1.101950e-185 |
| 0.3 | 1.716845e-122 |
| 0.4 | 1.723272e-90 |
| 0.5 | 4.590533e-71 |
| 0.6 | 5.699832e-58 |
| 0.7 | 1.612652e-48 |
| 0.8 | 2.323327e-41 |
| 0.9 | 9.623202e-36 |
| 1 | 3.250591e-31 |
| 1.5 | 2.462335e-17 |
| 2 | 3.665556e-10 |
| 2.5 | 4.550943e-06 |
| 3 | 6.435446e-03 |
| 3.5 | 1.790270e+00 |
| 4 | 1.393405e+02 |
| 4.5 | 4.460918e+03 |
| 5 | 7.589135e+04 |
| 6 | 6.096990e+06 |
| 7 | 1.600684e+08 |
| 8 | 2.046325e+09 |
| 9 | 1.589163e+10 |
| 10 | 8.558567e+10 |

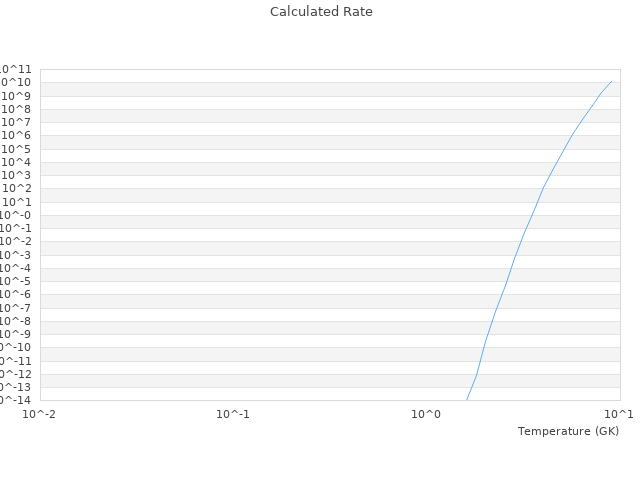

| View Graph | |
