Datapoints for he4 + ne22 -> n + mg25

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.283333e-29
0.15 2.562104e-21
0.2 1.315738e-16
0.3 3.264297e-11
0.4 2.009864e-08
0.5 9.978229e-07
0.6 1.954057e-05
0.7 2.557617e-04
0.8 2.232492e-03
0.9 1.364227e-02
1 6.327723e-02
1.5 1.211838e+01
2 2.981718e+02
2.5 2.747260e+03
3 1.429010e+04
3.5 5.127151e+04
4 1.420566e+05
4.5 3.260051e+05
5 6.492229e+05
6 1.899851e+06
7 4.223847e+06
8 7.886547e+06
9 1.318252e+07
10 2.059718e+07

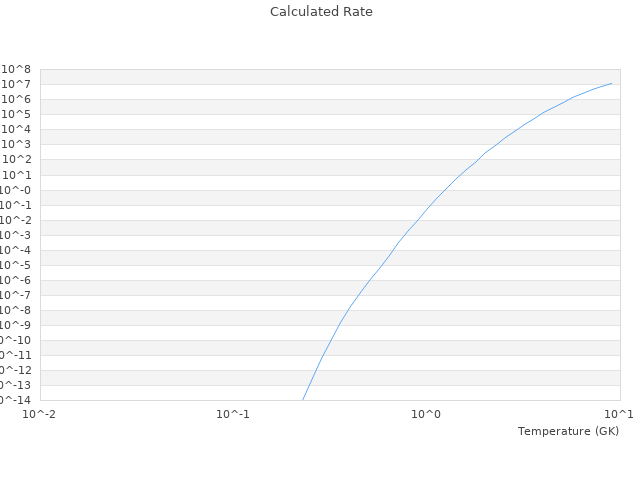

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.03 5.08E-87 5.51851479981E-87 8.6322 %
0.04 1.49E-66 1.42299651879E-66 4.4969 %
0.05 3.05E-54 2.75733327625E-54 9.5956 %
0.06 4.87E-46 4.48907897943E-46 7.8218 %
0.07 3.48E-40 3.36520688168E-40 3.2987 %
0.08 8.44E-36 8.63926321441E-36 2.3609 %
0.09 2.19E-32 2.32304765029E-32 6.0752 %
0.1 1.2E-29 1.28333338228E-29 6.9444 %
0.11 2.12E-27 2.24430856865E-27 5.8636 %
0.12 1.62E-25 1.66602924963E-25 2.8413 %
0.13 6.61E-24 6.47784706491E-24 1.9993 %
0.14 1.64E-22 1.54607085092E-22 5.7274 %
0.15 2.74E-21 2.56210447748E-21 6.4925 %
0.16 3.39E-20 3.23431520492E-20 4.5925 %
0.18 2.74E-18 2.84074910357E-18 3.677 %
0.2 1.24E-16 1.31573788034E-16 6.1079 %
0.25 2.06E-13 2.02663095686E-13 1.6199 %
0.3 3.36E-11 3.26429669967E-11 2.8483 %
0.35 1.29E-9 1.2825109174E-9 0.5805 %
0.4 2.0E-8 2.00986359901E-8 0.4932 %
0.45 1.71E-7 1.71471570261E-7 0.2758 %
0.5 1.0E-6 9.97822908469E-7 0.2177 %
0.6 1.92E-5 1.95405666329E-5 1.7738 %
0.7 0.000251 0.000255761719304 1.8971 %
0.8 0.00227 0.0022324921116 1.6523 %
0.9 0.0143 0.0136422741355 4.5995 %
1 0.0664 0.0632772301371 4.703 %
1.25 1.22 1.28301673863 5.1653 %
1.5 11.4 12.1183752202 6.3015 %
1.75 70.6 70.8211607981 0.3133 %
2 304 298.171753674 1.9172 %
2.5 2850 2747.26043932 3.6049 %
3 14600 14290.1035482 2.1226 %
3.5 51600 51271.5108758 0.6366 %
4 141000 142056.593005 0.7494 %
5 634000 649222.851479 2.4011 %
6 1880000 1899850.74226 1.0559 %
7 4230000 4223846.87492 0.1455 %
8 8010000 7886546.93918 1.5412 %
9 13300000 13182516.6707 0.8833 %
10 20400000 20597176.5302 0.9666 %
