Datapoints for he4 + i127 -> cs131

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.068975e-97
0.15 3.349067e-80
0.2 2.110929e-69
0.3 5.882275e-56
0.4 1.465727e-47
0.5 1.204226e-41
0.6 3.542089e-37
0.7 1.213642e-33
0.8 9.393107e-31
0.9 2.463219e-28
1 2.851465e-26
1.5 3.560831e-19
2 6.448189e-15
2.5 4.845722e-12
3 5.800974e-10
3.5 2.144063e-08
4 3.540142e-07
4.5 3.270296e-06
5 1.956118e-05
6 2.749161e-04
7 1.628591e-03
8 5.382908e-03
9 1.176459e-02
10 1.897182e-02

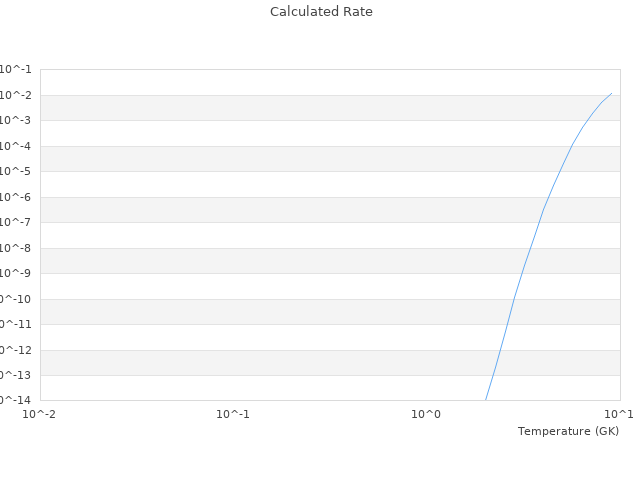

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.5 1.32E-41 1.2042256440321E-41 8.7708 %
0.6 3.79E-37 3.542089412729E-37 6.5412 %
0.7 1.26E-33 1.213642030082E-33 3.6792 %
0.8 9.34E-31 9.3931068798182E-31 0.5686 %
0.9 2.36E-28 2.4632188294051E-28 4.3737 %
1 2.64E-26 2.8514648325387E-26 8.01 %
1.5 3.04E-19 3.5608305392059E-19 17.1326 %
2 5.83E-15 6.4481890453016E-15 10.6036 %
2.5 5.0E-12 4.8457218272369E-12 3.0856 %
3 6.69E-10 5.800973522338E-10 13.2889 %
3.5 2.58E-8 2.1440634899759E-8 16.8968 %
4 4.18E-7 3.540142452967E-7 15.3076 %
4.5 3.66E-6 3.2702962964603E-6 10.6476 %
5 2.03E-5 1.95611785357E-5 3.6395 %
6 0.000251 0.00027491611863579 9.5283 %
7 0.00141 0.0016285912333454 15.5029 %
8 0.00486 0.0053829083438361 10.7594 %
9 0.0119 0.011764589629463 1.1379 %
10 0.0223 0.018971817915725 14.9246 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
