Datapoints for p + ni58 -> cu59

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.484983e-20
0.15 4.576284e-16
0.2 3.000487e-13
0.3 9.546615e-10
0.4 1.448078e-07
0.5 4.904759e-06
0.6 6.925077e-05
0.7 5.553318e-04
0.8 3.009742e-03
0.9 1.226498e-02
1 4.029277e-02
1.5 2.188638e+00
2 2.147214e+01
2.5 9.274439e+01
3 2.524590e+02
3.5 5.168687e+02
4 8.785388e+02
4.5 1.316581e+03
5 1.808665e+03
6 2.900280e+03
7 4.138790e+03
8 5.653165e+03
9 7.716905e+03
10 1.081664e+04

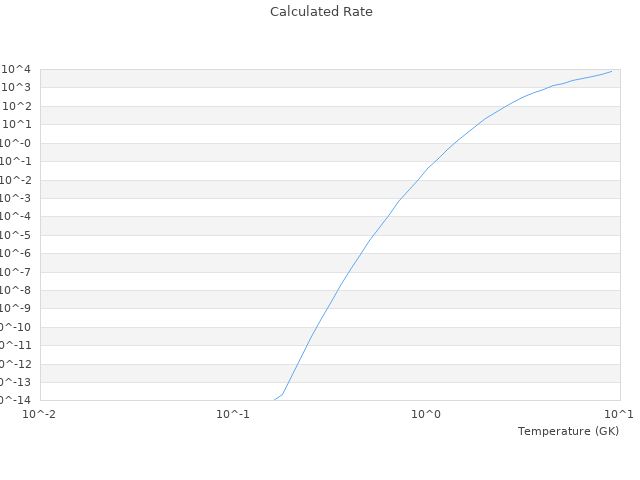

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 1.24E-20 1.48498304418E-20 19.7567 %
0.15 4.213E-16 4.57628414837E-16 8.6229 %
0.2 2.832E-13 3.0004866527E-13 5.9494 %
0.3 9.744E-10 9.54661502865E-10 2.0257 %
0.4 1.621E-7 1.44807828314E-7 10.6676 %
0.5 5.93E-6 4.90475888105E-6 17.2891 %
0.6 8.749E-5 6.9250770381E-5 20.8472 %
0.7 0.0007092 0.000555331757122 21.696 %
0.8 0.003789 0.00300974195815 20.5663 %
0.9 0.01497 0.0122649809228 18.0696 %
1 0.04725 0.0402927713488 14.7243 %
1.5 2.072 2.1886384868 5.6293 %
2 17.8 21.4721437956 20.63 %
2.5 73.63 92.7443904718 25.9601 %
3 205.1 252.459030997 23.0907 %
3.5 448.7 516.868717931 15.1925 %
4 835.5 878.538781295 5.1513 %
4.5 1385 1316.58063504 4.94 %
5 2100 1808.66547042 13.8731 %
6 3924 2900.27961558 26.0887 %
7 5913 4138.78976046 30.0052 %
8 7547 5653.16496131 25.0939 %
9 8468 7716.90533908 8.8698 %
10 8596 10816.6395542 25.8334 %
