Datapoints for p + mg25 -> al-6

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.826960e-08
0.15 5.590008e-06
0.2 1.083225e-03
0.3 2.350076e-01
0.4 3.502558e+00
0.5 1.803893e+01
0.6 5.477280e+01
0.7 1.230318e+02
0.8 2.288058e+02
0.9 3.748773e+02
1 5.615231e+02
1.5 2.009839e+03
2 3.876903e+03
2.5 5.470480e+03
3 6.262869e+03
3.5 6.093581e+03
4 5.165494e+03
4.5 3.873058e+03
5 2.594705e+03
6 8.536812e+02
7 1.915828e+02
8 3.012630e+01
9 3.385680e+00
10 2.761806e-01

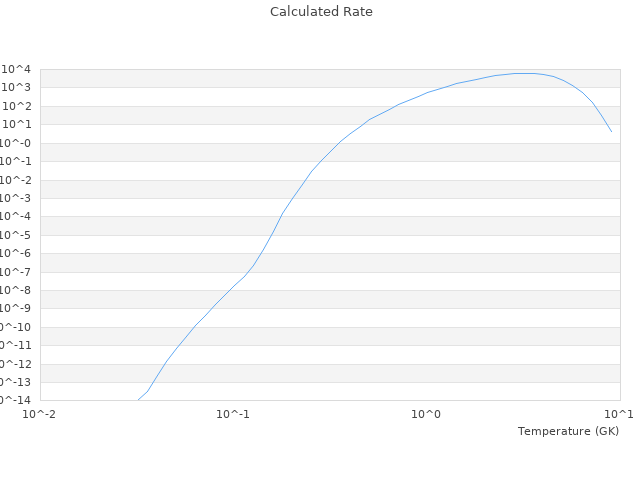

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 1.22E-32 1.20977628555E-32 0.838 %
0.011 6.37E-31 6.49206968296E-31 1.9163 %
0.012 2.95E-29 2.91245640434E-29 1.2727 %
0.013 1.32E-27 1.29160773621E-27 2.1509 %
0.014 4.21E-26 4.21444709008E-26 0.1056 %
0.015 8.9E-25 9.06802646007E-25 1.8879 %
0.016 1.3E-23 1.33106778512E-23 2.3898 %
0.018 1.12E-21 1.14271666412E-21 2.0283 %
0.02 3.89E-20 3.90462929896E-20 0.3761 %
0.025 2.21E-17 2.09486547064E-17 5.2097 %
0.03 1.45E-15 1.33508388285E-15 7.9252 %
0.04 2.52E-13 2.5004747957E-13 0.7748 %
0.05 5.96E-12 6.57007769716E-12 10.2362 %
0.06 6.25E-11 6.74474162481E-11 7.9159 %
0.07 4.17E-10 4.09495850825E-10 1.7996 %
0.08 1.93E-9 1.7872629204E-9 7.3957 %
0.09 6.68E-9 6.2108261369E-9 7.0236 %
0.1 1.87E-8 1.82695954698E-8 2.3016 %
0.11 4.7E-8 4.82342869799E-8 2.6261 %
0.12 1.23E-7 1.27206223755E-7 3.4197 %
0.13 3.87E-7 3.91503272524E-7 1.1636 %
0.14 1.45E-6 1.44849542707E-6 0.1038 %
0.15 5.63E-6 5.59000830639E-6 0.7103 %
0.16 2.01E-5 2.00011532451E-5 0.4918 %
0.18 0.000182 0.000181313076166 0.3774 %
0.2 0.00109 0.00108322450091 0.6216 %
0.25 0.0275 0.0272953593596 0.7441 %
0.3 0.235 0.235007647795 0.0033 %
0.35 1.09 1.09745224352 0.6837 %
0.4 3.46 3.50255806774 1.23 %
0.45 8.59 8.68171734075 1.0677 %
0.5 17.9 18.0389283583 0.7761 %
0.6 54.8 54.7728019249 0.0496 %
0.7 124 123.031782557 0.7808 %
0.8 231 228.80576954 0.9499 %
0.9 379 374.877289017 1.0878 %
1 566 561.523148776 0.791 %
1.25 1190 1192.33403071 0.1961 %
1.5 1900 2009.83946598 5.781 %
1.75 2910 2934.62556553 0.8462 %
2 3920 3876.90268247 1.0994 %
