Datapoints for p + mg25 -> al*6

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.190360e-08
0.15 1.076126e-06
0.2 1.758014e-04
0.3 3.941687e-02
0.4 6.683471e-01
0.5 3.933606e+00
0.6 1.344677e+01
0.7 3.340153e+01
0.8 6.756128e+01
0.9 1.186831e+02
1 1.883415e+02
1.5 8.025376e+02
2 1.698676e+03
2.5 2.633880e+03
3 3.459867e+03
3.5 4.127160e+03
4 4.645464e+03
4.5 5.050466e+03
5 5.384768e+03
6 6.001573e+03
7 6.783608e+03
8 8.010956e+03
9 1.006335e+04
10 1.360174e+04

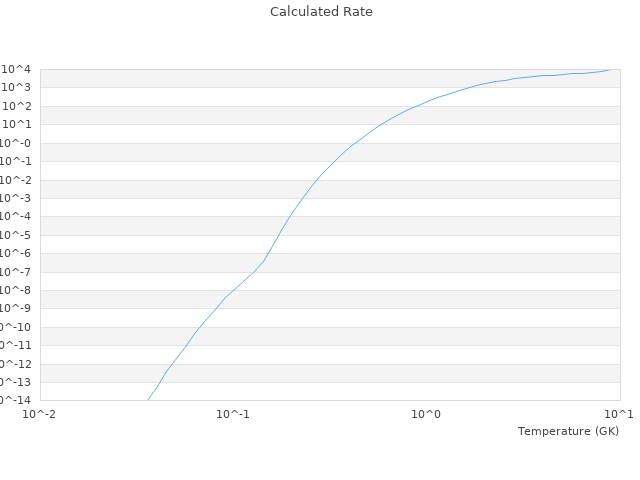

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.01 3.43E-33 3.37885411397E-33 1.4911 %
0.011 1.72E-31 1.77381784979E-31 3.1289 %
0.012 7.42E-30 7.28709619276E-30 1.7912 %
0.013 3.14E-28 3.04363460348E-28 3.069 %
0.014 9.89E-27 9.84385623153E-27 0.4666 %
0.015 2.08E-25 2.12561485912E-25 2.193 %
0.016 3.03E-24 3.12824390833E-24 3.2424 %
0.018 2.61E-22 2.67811443629E-22 2.6097 %
0.02 9.09E-21 9.07408422383E-21 0.1751 %
0.025 5.16E-18 4.79410258416E-18 7.091 %
0.03 3.38E-16 3.09803032476E-16 8.3423 %
0.04 6.17E-14 6.52530908564E-14 5.7587 %
0.05 1.83E-12 2.07730482894E-12 13.5139 %
0.06 2.66E-11 2.64511393738E-11 0.5596 %
0.07 2.19E-10 1.96560648591E-10 10.2463 %
0.08 1.12E-9 1.01012808096E-9 9.81 %
0.09 4.06E-9 3.90569648332E-9 3.8006 %
0.1 1.15E-8 1.19036010409E-8 3.5096 %
0.11 2.76E-8 2.96237424449E-8 7.3324 %
0.12 6.17E-8 6.36876771411E-8 3.2215 %
0.13 1.43E-7 1.34952780162E-7 5.6274 %
0.14 3.77E-7 3.42840475269E-7 9.0609 %
0.15 1.12E-6 1.07612581363E-6 3.9173 %
0.16 3.48E-6 3.54318380477E-6 1.8156 %
0.18 2.85E-5 3.02537160733E-5 6.1534 %
0.2 0.000168 0.000175801372968 4.6437 %
0.25 0.00442 0.00439354413147 0.5985 %
0.3 0.0404 0.0394168720262 2.4335 %
0.35 0.201 0.195693702173 2.6399 %
0.4 0.681 0.668347120666 1.858 %
0.45 1.79 1.7732668142 0.9348 %
0.5 3.95 3.93360640109 0.415 %
0.6 13.4 13.4467714799 0.349 %
0.7 33.3 33.401534679 0.3049 %
0.8 67.4 67.5612795042 0.2393 %
0.9 118 118.683074937 0.5789 %
1 187 188.341479003 0.7174 %
1.25 440 444.350872099 0.9888 %
1.5 794 802.537571003 1.0753 %
1.75 1230 1231.93833848 0.1576 %
2 1730 1698.67576199 1.8106 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
