Datapoints for p + cd111 -> he4 + ag108
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.730856e-49 |
| 0.15 | 2.740670e-41 |
| 0.2 | 2.714319e-36 |
| 0.3 | 8.113733e-30 |
| 0.4 | 1.371596e-25 |
| 0.5 | 1.659987e-22 |
| 0.6 | 4.121086e-20 |
| 0.7 | 3.577492e-18 |
| 0.8 | 1.474597e-16 |
| 0.9 | 3.493702e-15 |
| 1 | 5.402366e-14 |
| 1.5 | 8.702610e-10 |
| 2 | 3.514649e-07 |
| 2.5 | 2.164962e-05 |
| 3 | 4.389109e-04 |
| 3.5 | 4.358228e-03 |
| 4 | 2.671657e-02 |
| 4.5 | 1.170252e-01 |
| 5 | 4.039645e-01 |
| 6 | 3.042389e+00 |
| 7 | 1.632615e+01 |
| 8 | 7.672857e+01 |
| 9 | 3.590452e+02 |
| 10 | 1.819798e+03 |

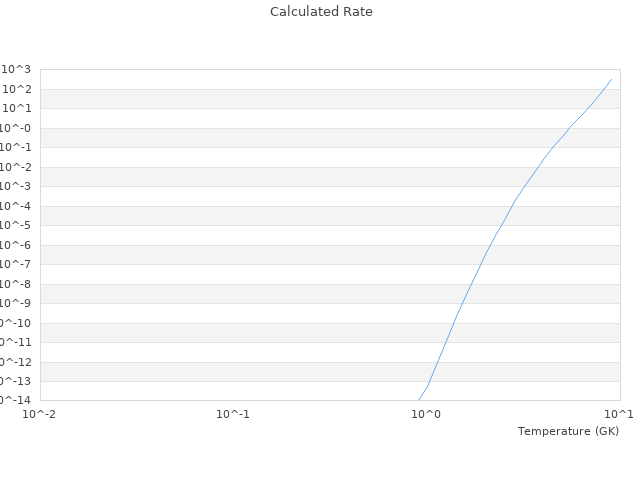

| View Graph | |
