Datapoints for p + k54 -> he4 + ar51
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.986093e-18 |
| 0.15 | 2.003248e-14 |
| 0.2 | 2.747496e-12 |
| 0.3 | 1.190673e-09 |
| 0.4 | 5.904015e-08 |
| 0.5 | 1.005687e-06 |
| 0.6 | 8.987251e-06 |
| 0.7 | 5.211217e-05 |
| 0.8 | 2.218118e-04 |
| 0.9 | 7.496059e-04 |
| 1 | 2.120956e-03 |
| 1.5 | 7.448282e-02 |
| 2 | 6.191654e-01 |
| 2.5 | 2.646688e+00 |
| 3 | 7.956243e+00 |
| 3.5 | 1.949538e+01 |
| 4 | 4.201885e+01 |
| 4.5 | 8.302994e+01 |
| 5 | 1.539412e+02 |
| 6 | 4.576630e+02 |
| 7 | 1.156327e+03 |
| 8 | 2.501320e+03 |
| 9 | 4.600716e+03 |
| 10 | 7.111247e+03 |

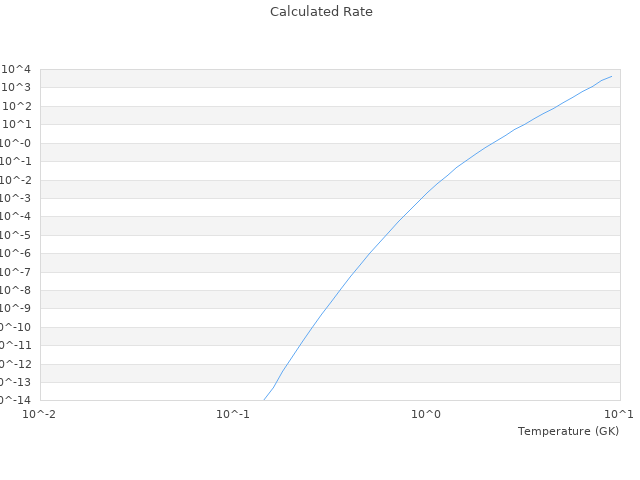

| View Graph | |
