Datapoints for p + in123 -> he4 + cd120
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.592144e-104 |
| 0.15 | 2.826002e-67 |
| 0.2 | 5.529965e-49 |
| 0.3 | 2.015616e-32 |
| 0.4 | 1.248521e-25 |
| 0.5 | 2.588559e-22 |
| 0.6 | 1.885331e-20 |
| 0.7 | 2.977918e-19 |
| 0.8 | 2.269536e-18 |
| 0.9 | 1.216834e-17 |
| 1 | 5.522311e-17 |
| 1.5 | 6.226418e-14 |
| 2 | 5.569192e-11 |
| 2.5 | 2.668901e-08 |
| 3 | 5.239473e-06 |
| 3.5 | 4.026549e-04 |
| 4 | 1.299639e-02 |
| 4.5 | 1.986536e-01 |
| 5 | 1.648264e+00 |
| 6 | 3.117865e+01 |
| 7 | 2.388159e+02 |
| 8 | 1.712362e+03 |
| 9 | 2.276587e+04 |
| 10 | 9.770424e+05 |

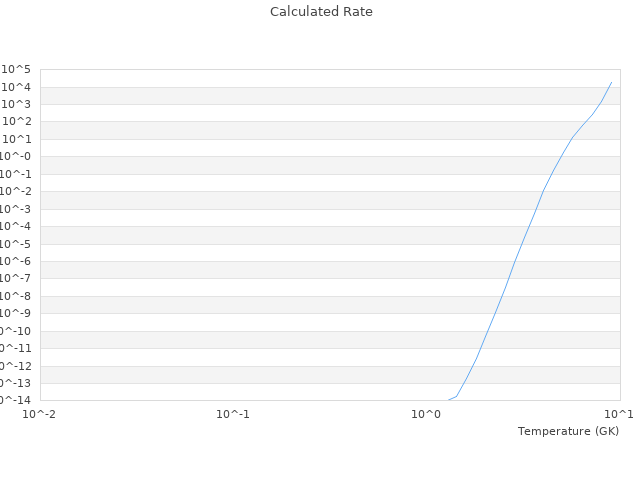

| View Graph | |
