Datapoints for p + ba116 -> he4 + cs113
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.343509e-51 |
| 0.15 | 3.843290e-44 |
| 0.2 | 2.228237e-39 |
| 0.3 | 2.704631e-33 |
| 0.4 | 2.355084e-29 |
| 0.5 | 1.775048e-26 |
| 0.6 | 3.176446e-24 |
| 0.7 | 2.227579e-22 |
| 0.8 | 8.119158e-21 |
| 0.9 | 1.829518e-19 |
| 1 | 2.855410e-18 |
| 1.5 | 8.715051e-14 |
| 2 | 1.146617e-10 |
| 2.5 | 2.874058e-08 |
| 3 | 2.525716e-06 |
| 3.5 | 1.058372e-04 |
| 4 | 2.522451e-03 |
| 4.5 | 3.818695e-02 |
| 5 | 3.953818e-01 |
| 6 | 1.646613e+01 |
| 7 | 2.399951e+02 |
| 8 | 1.443219e+03 |
| 9 | 3.988314e+03 |
| 10 | 5.462147e+03 |

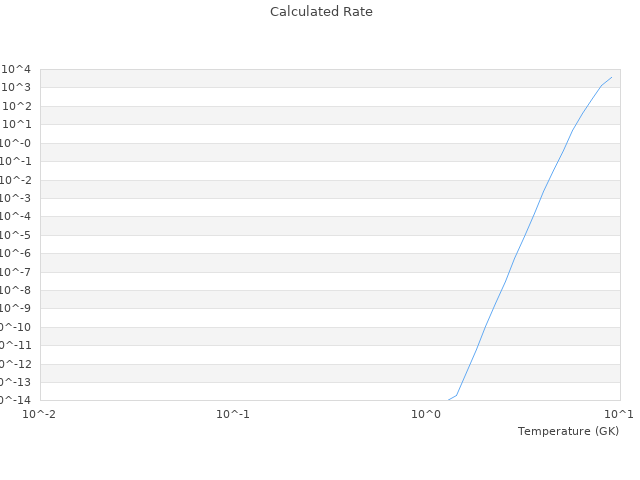

| View Graph | |
