Datapoints for p + ba138 -> he4 + cs135
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.082425e-145 |
| 0.15 | 2.995615e-93 |
| 0.2 | 1.483548e-66 |
| 0.3 | 2.311693e-41 |
| 0.4 | 1.720739e-30 |
| 0.5 | 5.342947e-25 |
| 0.6 | 6.711111e-22 |
| 0.7 | 5.629917e-20 |
| 0.8 | 1.147596e-18 |
| 0.9 | 1.082978e-17 |
| 1 | 6.645823e-17 |
| 1.5 | 6.591982e-14 |
| 2 | 2.609689e-11 |
| 2.5 | 5.628054e-09 |
| 3 | 5.534083e-07 |
| 3.5 | 2.346244e-05 |
| 4 | 4.498892e-04 |
| 4.5 | 4.321063e-03 |
| 5 | 2.355529e-02 |
| 6 | 2.151576e-01 |
| 7 | 9.192400e-01 |
| 8 | 4.317394e+00 |
| 9 | 4.540907e+01 |
| 10 | 1.921220e+03 |

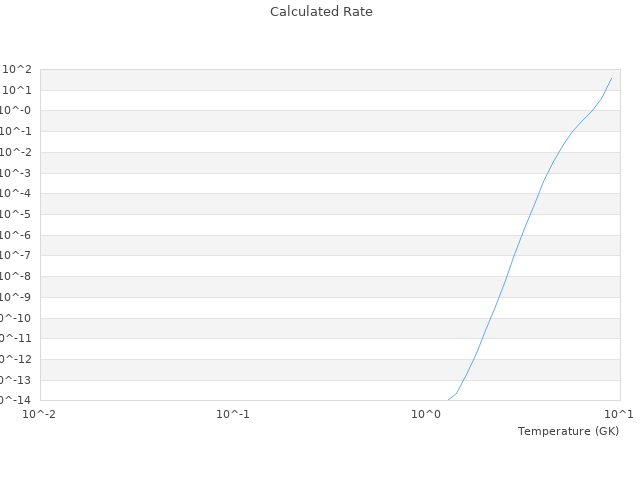

| View Graph | |
