Datapoints for n + dy146 -> he4 + gd143
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.290932e+05 |
| 0.15 | 1.104208e+05 |
| 0.2 | 1.104483e+05 |
| 0.3 | 1.191010e+05 |
| 0.4 | 1.262048e+05 |
| 0.5 | 1.298961e+05 |
| 0.6 | 1.311432e+05 |
| 0.7 | 1.310821e+05 |
| 0.8 | 1.305650e+05 |
| 0.9 | 1.301567e+05 |
| 1 | 1.302143e+05 |
| 1.5 | 1.432525e+05 |
| 2 | 1.864826e+05 |
| 2.5 | 2.780222e+05 |
| 3 | 4.553025e+05 |
| 3.5 | 7.901345e+05 |
| 4 | 1.411726e+06 |
| 4.5 | 2.538059e+06 |
| 5 | 4.508511e+06 |
| 6 | 1.297782e+07 |
| 7 | 3.085440e+07 |
| 8 | 5.710509e+07 |
| 9 | 7.895079e+07 |
| 10 | 7.917674e+07 |

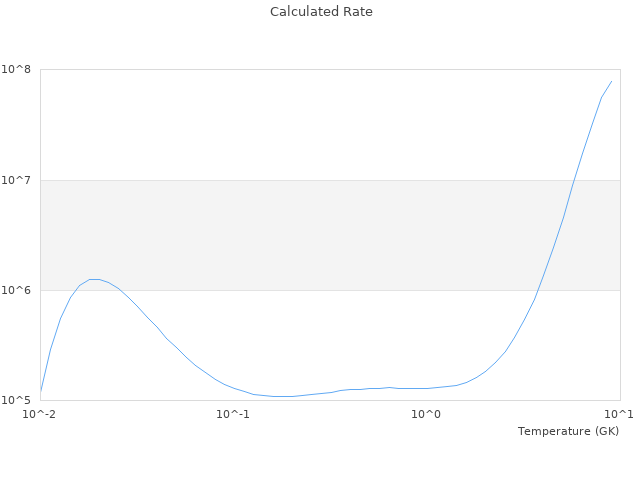

| View Graph | |
