Datapoints for p + xe123 -> he4 + i120
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.285338e-50 |
| 0.15 | 1.414215e-42 |
| 0.2 | 2.264626e-37 |
| 0.3 | 1.170309e-30 |
| 0.4 | 2.711559e-26 |
| 0.5 | 4.066300e-23 |
| 0.6 | 1.187250e-20 |
| 0.7 | 1.176290e-18 |
| 0.8 | 5.432092e-17 |
| 0.9 | 1.424614e-15 |
| 1 | 2.418551e-14 |
| 1.5 | 5.843036e-10 |
| 2 | 3.383540e-07 |
| 2.5 | 2.919555e-05 |
| 3 | 8.122828e-04 |
| 3.5 | 1.083380e-02 |
| 4 | 8.717394e-02 |
| 4.5 | 4.890867e-01 |
| 5 | 2.107673e+00 |
| 6 | 2.282723e+01 |
| 7 | 1.576569e+02 |
| 8 | 8.513237e+02 |
| 9 | 4.081754e+03 |
| 10 | 1.889967e+04 |

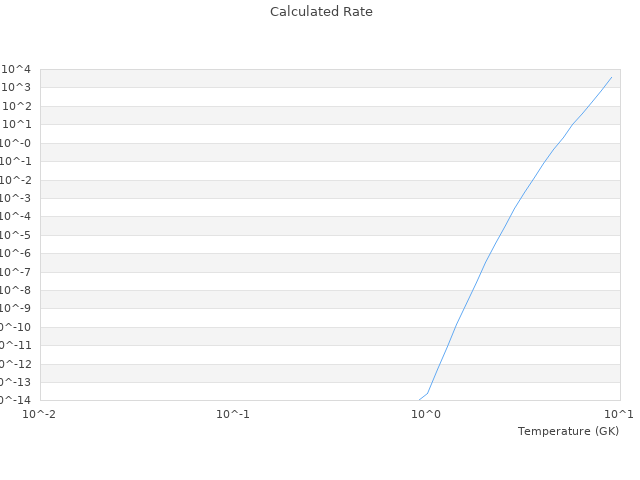

| View Graph | |
