Datapoints for p + sn117 -> he4 + in114
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.410253e-50 |
| 0.15 | 3.270712e-42 |
| 0.2 | 4.243374e-37 |
| 0.3 | 1.749313e-30 |
| 0.4 | 3.554696e-26 |
| 0.5 | 4.830601e-23 |
| 0.6 | 1.294177e-20 |
| 0.7 | 1.182044e-18 |
| 0.8 | 5.038830e-17 |
| 0.9 | 1.219731e-15 |
| 1 | 1.910066e-14 |
| 1.5 | 3.053423e-10 |
| 2 | 1.171881e-07 |
| 2.5 | 6.857426e-06 |
| 3 | 1.342480e-04 |
| 3.5 | 1.318640e-03 |
| 4 | 8.223045e-03 |
| 4.5 | 3.775682e-02 |
| 5 | 1.409293e-01 |
| 6 | 1.364203e+00 |
| 7 | 1.067650e+01 |
| 8 | 8.290531e+01 |
| 9 | 7.244835e+02 |
| 10 | 7.730258e+03 |

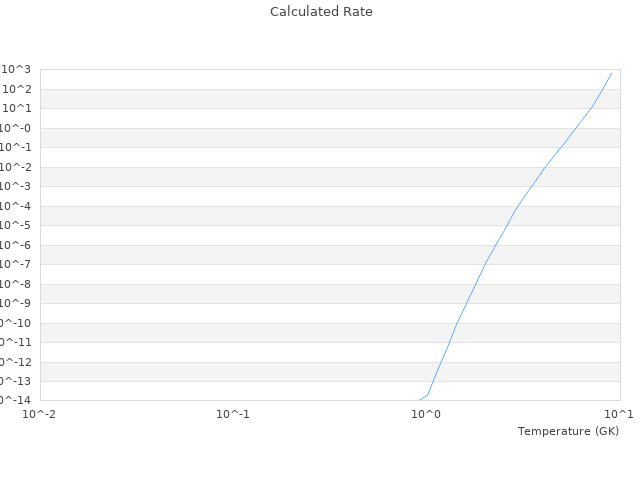

| View Graph | |
