Datapoints for he4 + ir174 -> p + pt177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 3.470159e-246 |
| 0.3 | 1.891173e-157 |
| 0.4 | 1.038394e-115 |
| 0.5 | 3.234032e-92 |
| 0.6 | 2.095415e-77 |
| 0.7 | 2.836013e-67 |
| 0.8 | 6.813969e-60 |
| 0.9 | 3.081767e-54 |
| 1 | 1.010372e-49 |
| 1.5 | 1.811951e-35 |
| 2 | 5.167203e-27 |
| 2.5 | 5.085106e-21 |
| 3 | 1.503487e-16 |
| 3.5 | 3.485765e-13 |
| 4 | 1.142181e-10 |
| 4.5 | 8.176841e-09 |
| 5 | 1.819137e-07 |
| 6 | 8.509415e-06 |
| 7 | 8.034659e-05 |
| 8 | 6.706981e-04 |
| 9 | 1.572717e-02 |
| 10 | 2.594903e+00 |

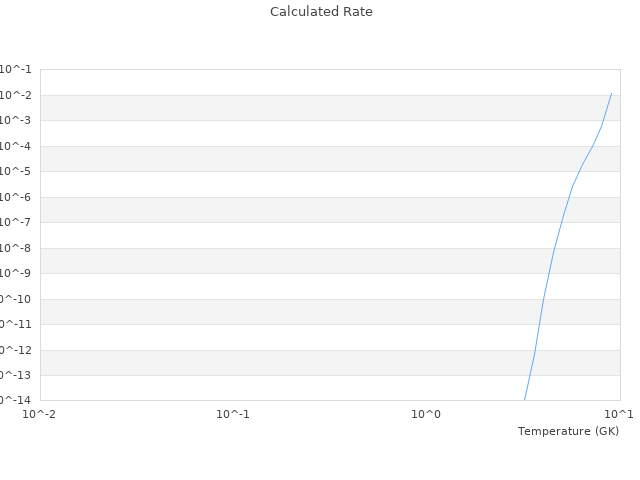

| View Graph | |
