Datapoints for p + al27 -> he4 + mg24
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.660282e-11 |
| 0.15 | 1.184558e-08 |
| 0.2 | 8.521010e-07 |
| 0.3 | 6.471200e-04 |
| 0.4 | 4.307379e-02 |
| 0.5 | 7.254469e-01 |
| 0.6 | 4.610544e+00 |
| 0.7 | 1.464724e+01 |
| 0.8 | 3.789566e+01 |
| 0.9 | 9.355503e+01 |
| 1 | 2.061208e+02 |
| 1.5 | 3.119475e+03 |
| 2 | 1.679397e+04 |
| 2.5 | 5.547942e+04 |
| 3 | 1.380359e+05 |
| 3.5 | 2.855802e+05 |
| 4 | 5.192025e+05 |
| 4.5 | 8.581969e+05 |
| 5 | 1.318974e+06 |
| 6 | 2.655041e+06 |
| 7 | 4.596562e+06 |
| 8 | 7.180593e+06 |
| 9 | 1.043675e+07 |
| 10 | 1.441102e+07 |

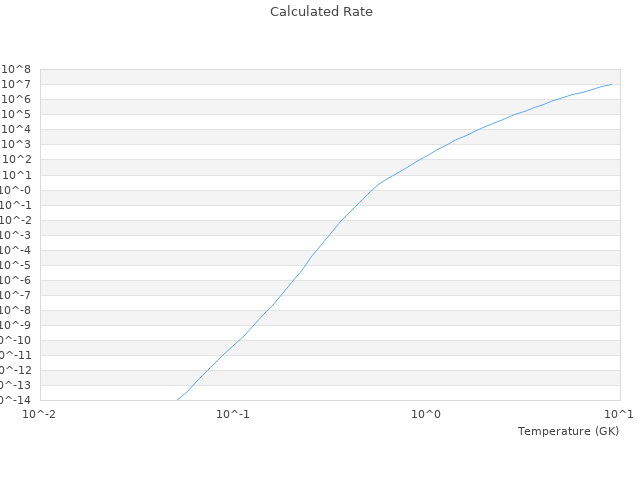

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
