Datapoints for he4 + mo106 -> p + tc109
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.524278e-259 |
| 0.2 | 2.112191e-196 |
| 0.3 | 1.138476e-133 |
| 0.4 | 1.574511e-102 |
| 0.5 | 7.071288e-84 |
| 0.6 | 2.155443e-71 |
| 0.7 | 2.139725e-62 |
| 0.8 | 1.464530e-55 |
| 0.9 | 3.698055e-50 |
| 1 | 9.325808e-46 |
| 1.5 | 8.585376e-32 |
| 2 | 4.859184e-24 |
| 2.5 | 5.590247e-19 |
| 3 | 2.101832e-15 |
| 3.5 | 9.198346e-13 |
| 4 | 9.393709e-11 |
| 4.5 | 3.441224e-09 |
| 5 | 6.039613e-08 |
| 6 | 4.445786e-06 |
| 7 | 1.157483e-04 |
| 8 | 2.154423e-03 |
| 9 | 4.617393e-02 |
| 10 | 1.601834e+00 |

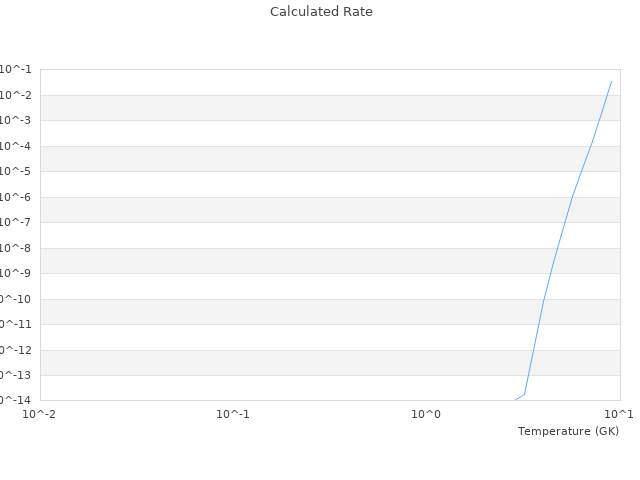

| View Graph | |
