Datapoints for he4 + nd136 -> n + sm139
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-315 |
| 0.3 | 1.642009e-208 |
| 0.4 | 5.455327e-155 |
| 0.5 | 7.022616e-123 |
| 0.6 | 1.779549e-101 |
| 0.7 | 3.442752e-86 |
| 0.8 | 1.001723e-74 |
| 0.9 | 8.252236e-66 |
| 1 | 1.119989e-58 |
| 1.5 | 2.856830e-37 |
| 2 | 1.526849e-26 |
| 2.5 | 4.470937e-20 |
| 3 | 9.801990e-16 |
| 3.5 | 1.317635e-12 |
| 4 | 3.099261e-10 |
| 4.5 | 2.280073e-08 |
| 5 | 7.425270e-07 |
| 6 | 1.530867e-04 |
| 7 | 7.634151e-03 |
| 8 | 1.537382e-01 |
| 9 | 1.658234e+00 |
| 10 | 1.133289e+01 |

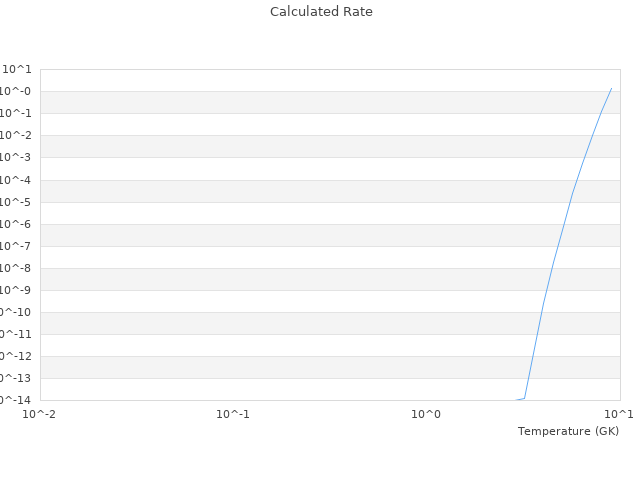

| View Graph | |
