Datapoints for p + ag103 -> he4 + pd100
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.838126e-39 |
| 0.15 | 1.929743e-32 |
| 0.2 | 3.573594e-28 |
| 0.3 | 9.233489e-23 |
| 0.4 | 2.660166e-19 |
| 0.5 | 8.188943e-17 |
| 0.6 | 6.754593e-15 |
| 0.7 | 2.360450e-13 |
| 0.8 | 4.527573e-12 |
| 0.9 | 5.591185e-11 |
| 1 | 4.936312e-10 |
| 1.5 | 1.198566e-06 |
| 2 | 1.773911e-04 |
| 2.5 | 6.388099e-03 |
| 3 | 9.888006e-02 |
| 3.5 | 8.759015e-01 |
| 4 | 5.227312e+00 |
| 4.5 | 2.325968e+01 |
| 5 | 8.251990e+01 |
| 6 | 6.260554e+02 |
| 7 | 2.905763e+03 |
| 8 | 9.477946e+03 |
| 9 | 2.369478e+04 |
| 10 | 4.810340e+04 |

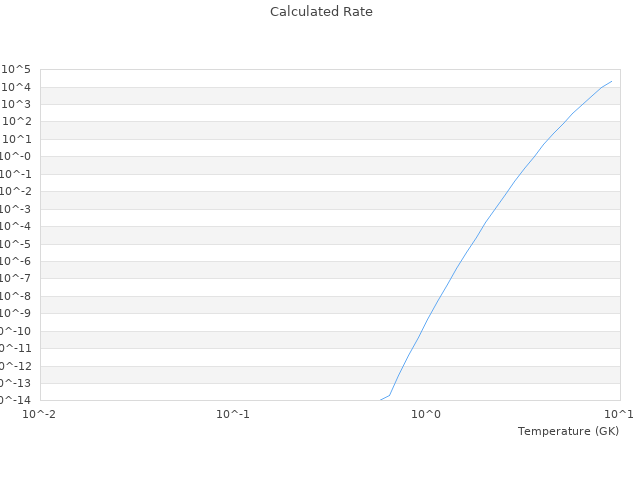

| View Graph | |
