Datapoints for he4 + pd103 -> p + ag106
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-312 |
| 0.15 | 3.322220e-215 |
| 0.2 | 1.253005e-165 |
| 0.3 | 5.995926e-115 |
| 0.4 | 7.004263e-89 |
| 0.5 | 7.700573e-73 |
| 0.6 | 6.802544e-62 |
| 0.7 | 6.665508e-54 |
| 0.8 | 8.756494e-48 |
| 0.9 | 6.250210e-43 |
| 1 | 5.660419e-39 |
| 1.5 | 1.573057e-26 |
| 2 | 8.672282e-20 |
| 2.5 | 1.878653e-15 |
| 3 | 2.216104e-12 |
| 3.5 | 4.564822e-10 |
| 4 | 2.994417e-08 |
| 4.5 | 8.820507e-07 |
| 5 | 1.442149e-05 |
| 6 | 1.098037e-03 |
| 7 | 2.592213e-02 |
| 8 | 2.704059e-01 |
| 9 | 1.532463e+00 |
| 10 | 5.373608e+00 |

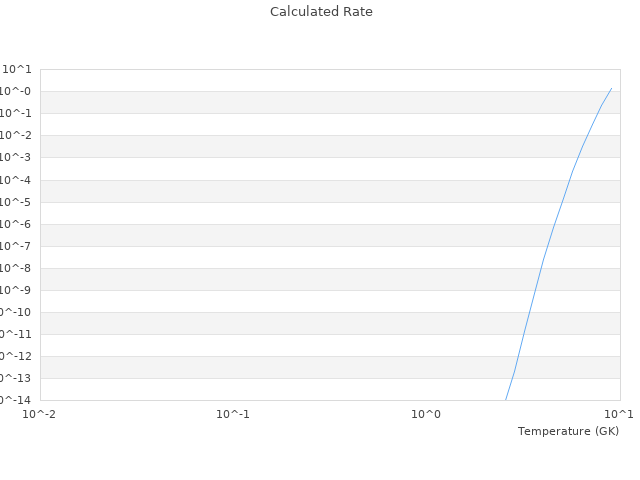

| View Graph | |
