Datapoints for p + pd107 -> he4 + rh104
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.342255e-45 |
| 0.15 | 5.193941e-38 |
| 0.2 | 1.644398e-33 |
| 0.3 | 9.897850e-28 |
| 0.4 | 5.498946e-24 |
| 0.5 | 2.893801e-21 |
| 0.6 | 3.750273e-19 |
| 0.7 | 1.933851e-17 |
| 0.8 | 5.213359e-16 |
| 0.9 | 8.703085e-15 |
| 1 | 1.006113e-13 |
| 1.5 | 6.768248e-10 |
| 2 | 1.983601e-07 |
| 2.5 | 1.171290e-05 |
| 3 | 2.646249e-04 |
| 3.5 | 3.173697e-03 |
| 4 | 2.440872e-02 |
| 4.5 | 1.355452e-01 |
| 5 | 5.882456e-01 |
| 6 | 6.499194e+00 |
| 7 | 4.394155e+01 |
| 8 | 2.148904e+02 |
| 9 | 8.442827e+02 |
| 10 | 2.858079e+03 |

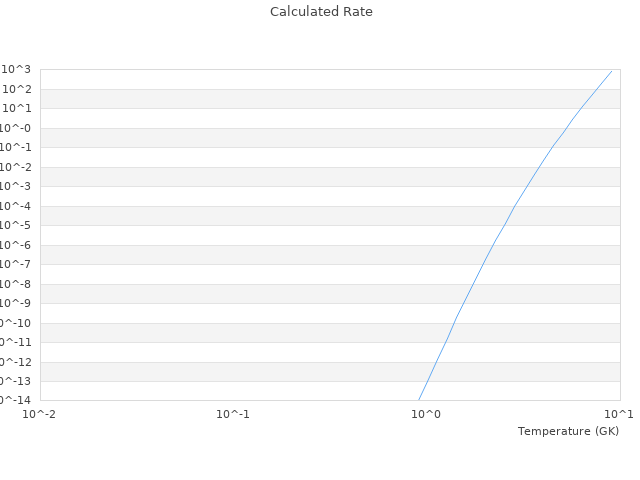

| View Graph | |
