Datapoints for he4 + sn133 -> p + sb136
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-321 |
| 0.3 | 1.757860e-216 |
| 0.4 | 1.830896e-164 |
| 0.5 | 2.219745e-133 |
| 0.6 | 1.187451e-112 |
| 0.7 | 8.730304e-98 |
| 0.8 | 1.482333e-86 |
| 0.9 | 9.752746e-78 |
| 1 | 1.330309e-70 |
| 1.5 | 2.001450e-48 |
| 2 | 1.420889e-36 |
| 2.5 | 4.225136e-29 |
| 3 | 5.557335e-24 |
| 3.5 | 2.642044e-20 |
| 4 | 1.404627e-17 |
| 4.5 | 1.655902e-15 |
| 5 | 6.801738e-14 |
| 6 | 1.590325e-11 |
| 7 | 9.783920e-10 |
| 8 | 4.435088e-08 |
| 9 | 2.932636e-06 |
| 10 | 4.570937e-04 |

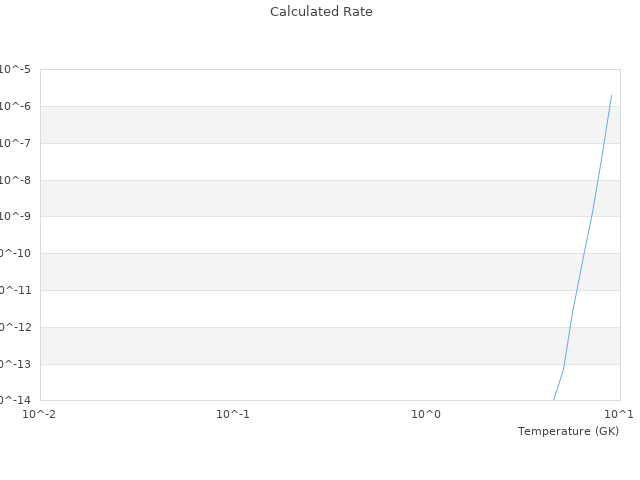

| View Graph | |
