Datapoints for he4 + tm166 -> n + lu169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | INFe-316 |
| 0.2 | 5.384535e-237 |
| 0.3 | 1.872435e-157 |
| 0.4 | 1.135589e-117 |
| 0.5 | 8.473306e-94 |
| 0.6 | 6.999271e-78 |
| 0.7 | 1.647242e-66 |
| 0.8 | 5.610344e-58 |
| 0.9 | 2.452358e-51 |
| 1 | 5.096142e-46 |
| 1.5 | 5.450962e-30 |
| 2 | 7.601369e-22 |
| 2.5 | 7.804819e-17 |
| 3 | 2.199639e-13 |
| 3.5 | 7.893775e-11 |
| 4 | 7.694929e-09 |
| 4.5 | 3.085519e-07 |
| 5 | 6.503135e-06 |
| 6 | 7.351042e-04 |
| 7 | 2.257325e-02 |
| 8 | 2.650807e-01 |
| 9 | 1.430484e+00 |
| 10 | 3.948064e+00 |

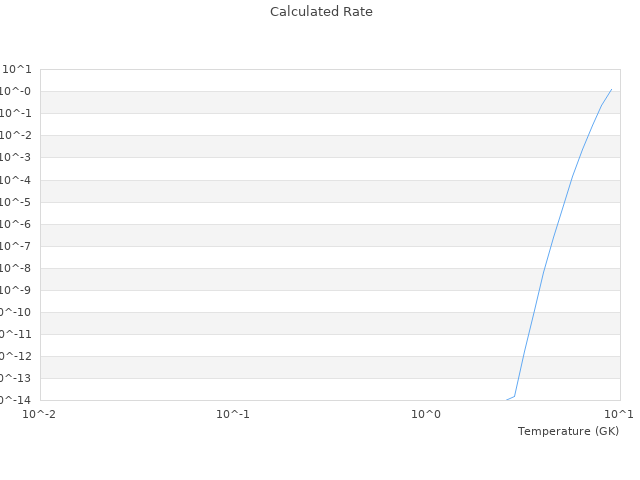

| View Graph | |
