Datapoints for p + cs117 -> he4 + xe114
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.275379e-44 |
| 0.15 | 1.402790e-36 |
| 0.2 | 8.679662e-32 |
| 0.3 | 1.045585e-25 |
| 0.4 | 8.060161e-22 |
| 0.5 | 5.011966e-19 |
| 0.6 | 7.060049e-17 |
| 0.7 | 3.771772e-15 |
| 0.8 | 1.022984e-13 |
| 0.9 | 1.686205e-12 |
| 1 | 1.901175e-11 |
| 1.5 | 1.041018e-07 |
| 2 | 2.403009e-05 |
| 2.5 | 1.126362e-03 |
| 3 | 2.049637e-02 |
| 3.5 | 2.007202e-01 |
| 4 | 1.274586e+00 |
| 4.5 | 5.892851e+00 |
| 5 | 2.141639e+01 |
| 6 | 1.674626e+02 |
| 7 | 8.024591e+02 |
| 8 | 2.758573e+03 |
| 9 | 7.504057e+03 |
| 10 | 1.723630e+04 |

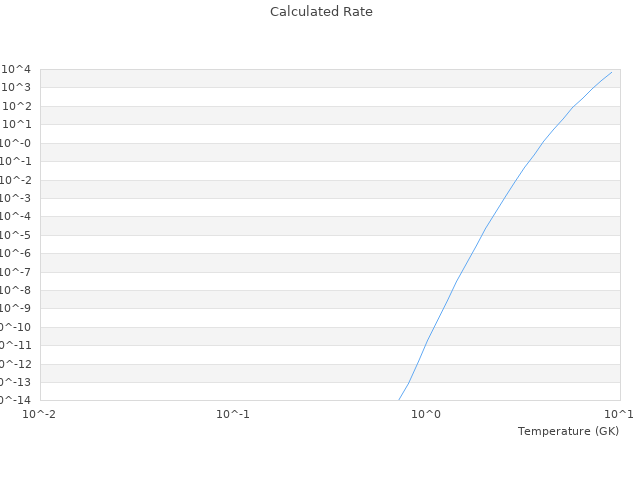

| View Graph | |
