Datapoints for p + cs138 -> he4 + xe135
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.578721e-110 |
| 0.15 | 1.689396e-68 |
| 0.2 | 3.994876e-48 |
| 0.3 | 6.612202e-30 |
| 0.4 | 1.308272e-22 |
| 0.5 | 3.673931e-19 |
| 0.6 | 2.639967e-17 |
| 0.7 | 3.644909e-16 |
| 0.8 | 2.325600e-15 |
| 0.9 | 1.032347e-14 |
| 1 | 3.885163e-14 |
| 1.5 | 1.862221e-11 |
| 2 | 7.240993e-09 |
| 2.5 | 1.379628e-06 |
| 3 | 9.657547e-05 |
| 3.5 | 2.429406e-03 |
| 4 | 2.446943e-02 |
| 4.5 | 1.158606e-01 |
| 5 | 3.071893e-01 |
| 6 | 7.458909e-01 |
| 7 | 1.200474e+00 |
| 8 | 3.540956e+00 |
| 9 | 4.347707e+01 |
| 10 | 4.297976e+03 |

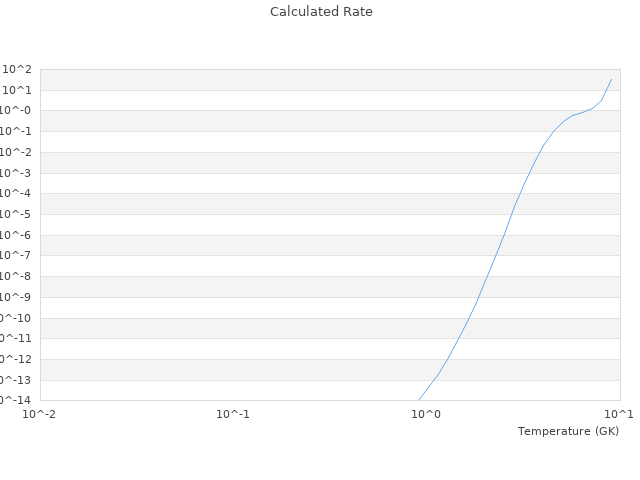

| View Graph | |
