Datapoints for he4 + ca57 -> n + ti60
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.589673e-78 |
| 0.15 | 6.689414e-53 |
| 0.2 | 1.104135e-39 |
| 0.3 | 1.145389e-26 |
| 0.4 | 1.645492e-20 |
| 0.5 | 5.438734e-17 |
| 0.6 | 1.076436e-14 |
| 0.7 | 4.896780e-13 |
| 0.8 | 9.632805e-12 |
| 0.9 | 1.133929e-10 |
| 1 | 9.546902e-10 |
| 1.5 | 3.197714e-06 |
| 2 | 1.251216e-03 |
| 2.5 | 1.272521e-01 |
| 3 | 4.450895e+00 |
| 3.5 | 6.517071e+01 |
| 4 | 4.729494e+02 |
| 4.5 | 1.974890e+03 |
| 5 | 5.412095e+03 |
| 6 | 1.797188e+04 |
| 7 | 3.709996e+04 |
| 8 | 8.556165e+04 |
| 9 | 3.475228e+05 |
| 10 | 3.554426e+06 |

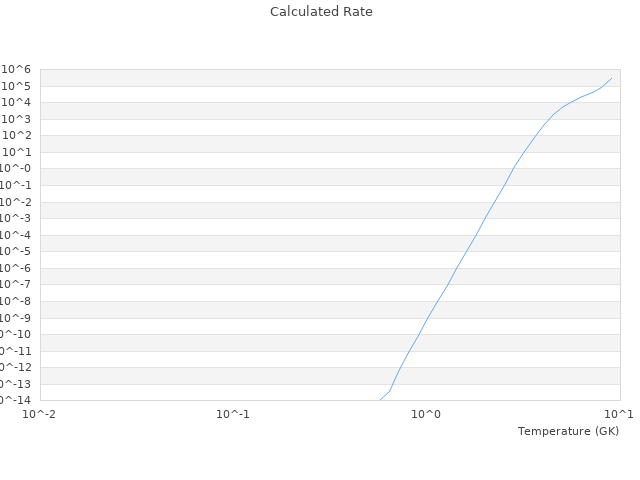

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
